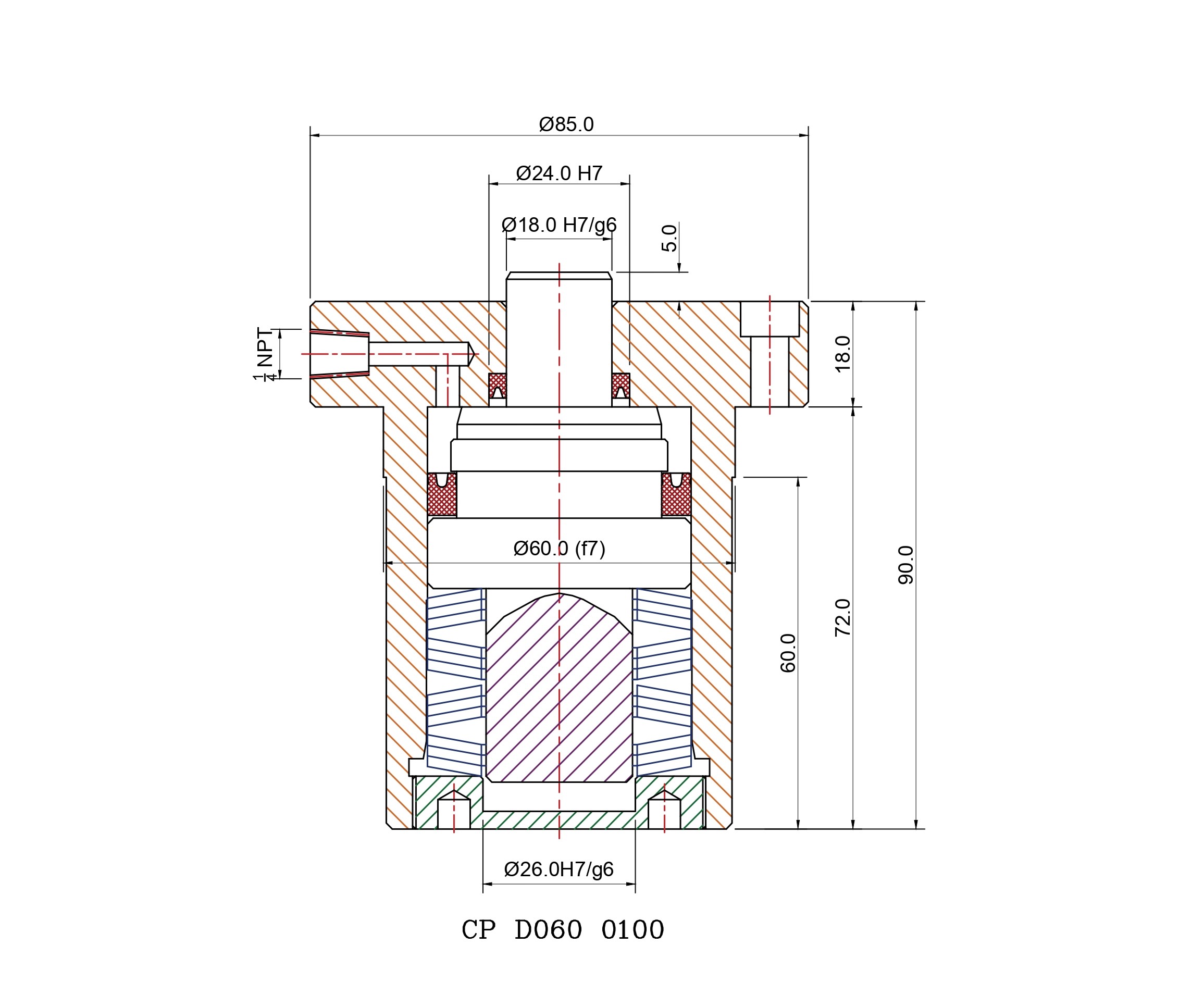

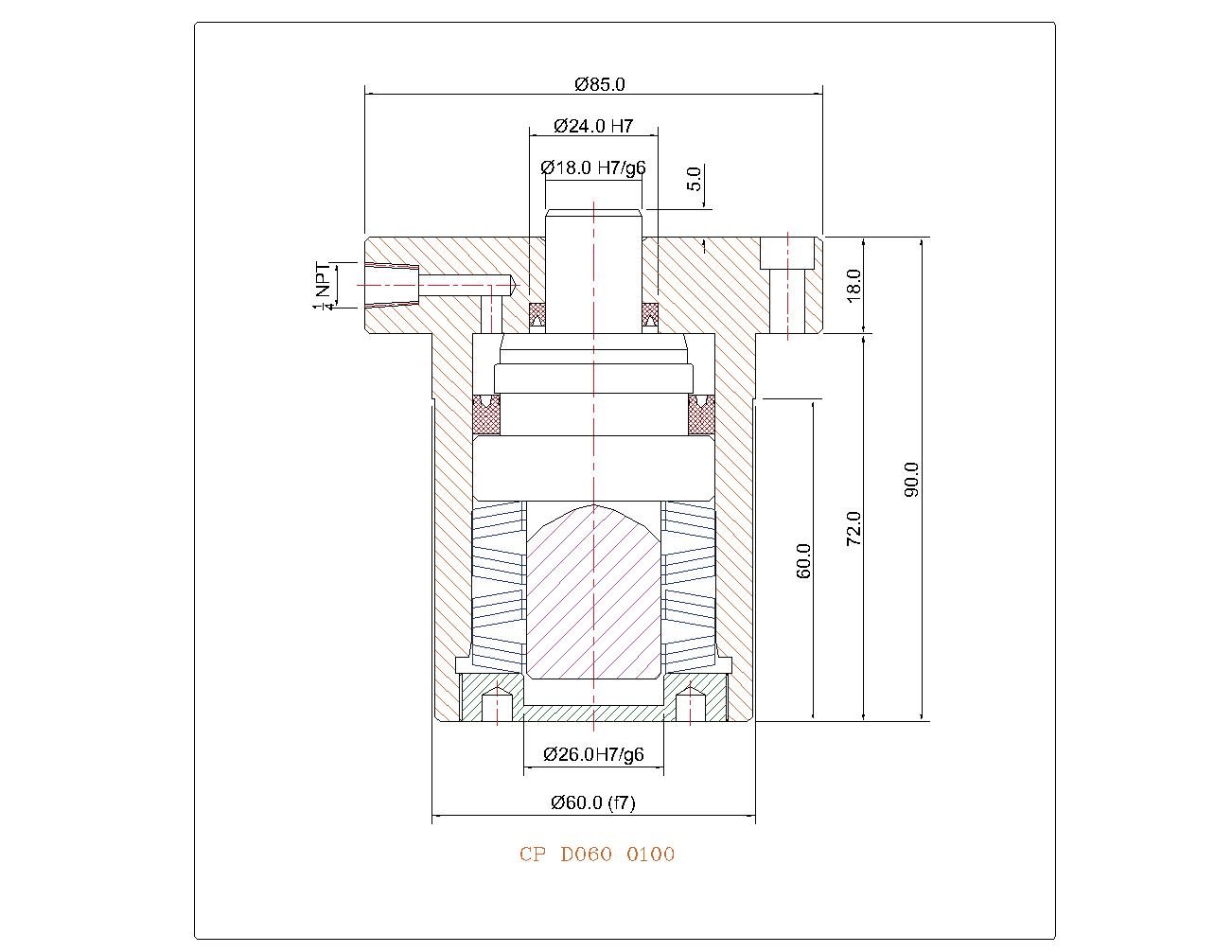

Hydro-mechanical Spring clamping pistons are working with interaction of mechanical and hydraulic systems. The clamping force is applied through preloaded disk spring. The cylinders are loaded with spring clamping force, the hydraulic pressure is required only for the release of the spring force for the movement for the piston. This system guarantees the reliability because the clamping force is maintained fully independent of the oil pressure or leakage losses. Due to the short operating time the hydraulic system is cost effective.
| Model Code | Dia. A | L | L 1 | Dia. - R | Dia. - D | T | N x M x P | Clamp. Force Kg. | Oil Req. in CC | Port Size | Wt. in Kg |
|---|
