Information

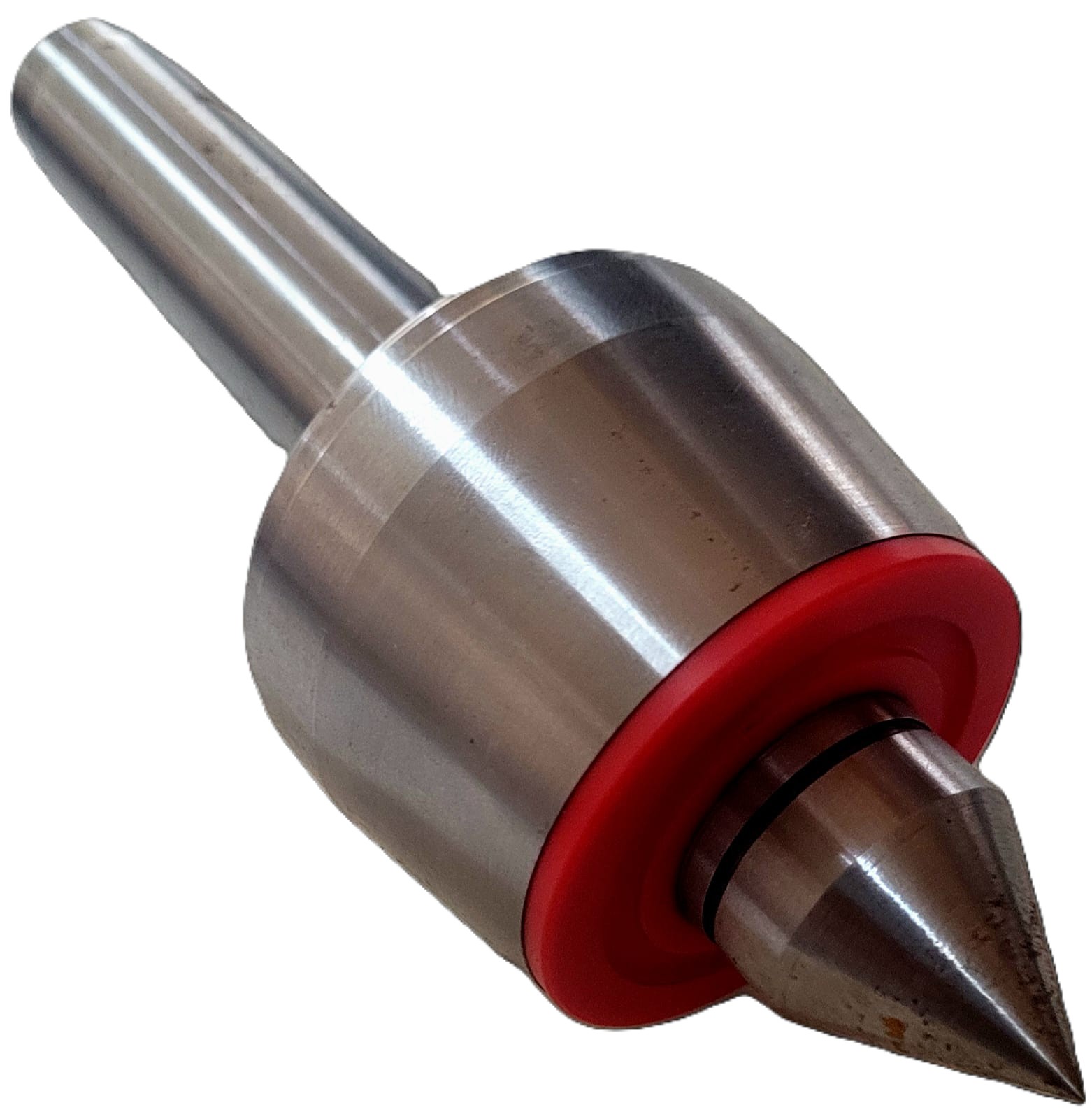

The requirement for high cutting capacities and high working precision demands an additional support by a revolving live centre for many workpieces due to their shape and length. Thanks to their precision bearings, live centres offer optimal force absorption and a maximum concentricity deviation of up to 0.003 mm. The centre points are maintenance free with the lifetime lubrication.
MRP : 1000/- + (GST 18% Extra)
Offer price : 700/- + (GST 18% Extra)

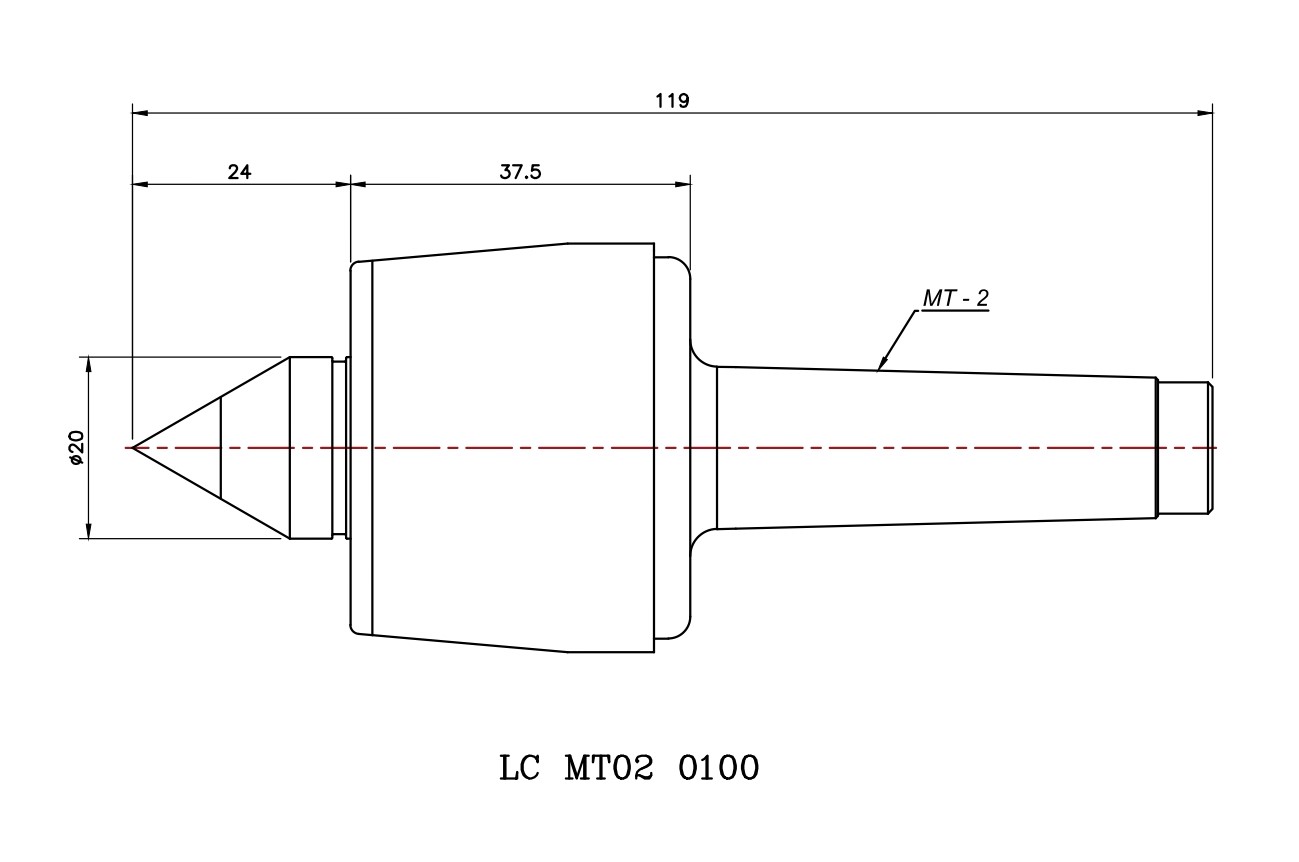

Ordering code : LC MT02 0100
Available stock : 15
MOQ : 1 (Nos.)
Delivery days : 7
Max. working speed | 3000 RPM |
Axial load capacity | 600 Kg |
Radial load capacity | 600 kg |
Concentricity | 0.003 mm |
Finish Weight in Kg | 2.4 Kg |

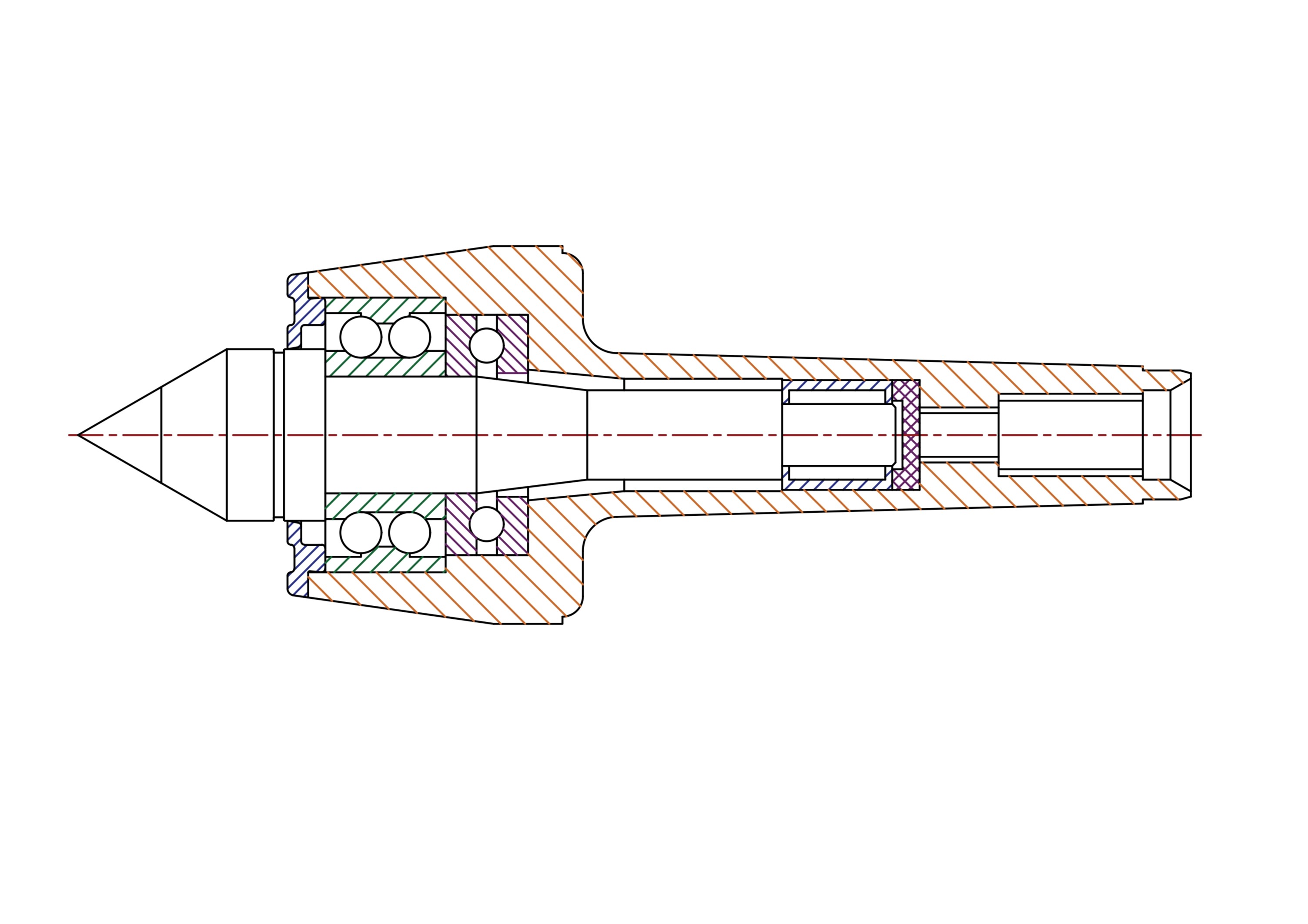

Live centres are manufactured to mount in the morse taper of tail stock. The centres are housed in a housing manufactured from alloy steel and mounted on the roller bearings. Bearings are designed for long life and to provide required accuracy. Bearings are lubricated with grease for lifetime. Centres are hardened to 60 HRC for wear. Detailed construction can be understood from the attached drawing, which is self-explanatory.
Centres are hardened and ground to 60 HRC.
Provided with Thrust, needle and self-aligning bearings.
Sealed with lifelong high-quality grease.
Sealed with special high temperature seal.
Front flow breaking groove is provided.
Components are manufactured from Alloy Steel
Components are Manufactured from Rolled bars.
Components are treated for rust prevention.
Components are Treated for wear and Strength.
Raw materials from indigenous source only.
All bought out Items from reputed manufacturers.
For counter-clamping workpieces on turning and grinding machines. Especially suited for cramped work area between centre point and workpiece as well as low-lying workpiece centres.
For counter-clamping especially heavy workpieces on turning and grinding machines. Especially suitable for use on NC-machines.
For counter-clamping workpieces on turning and grinding machines. Especially suitable for complex machining at high speeds.
