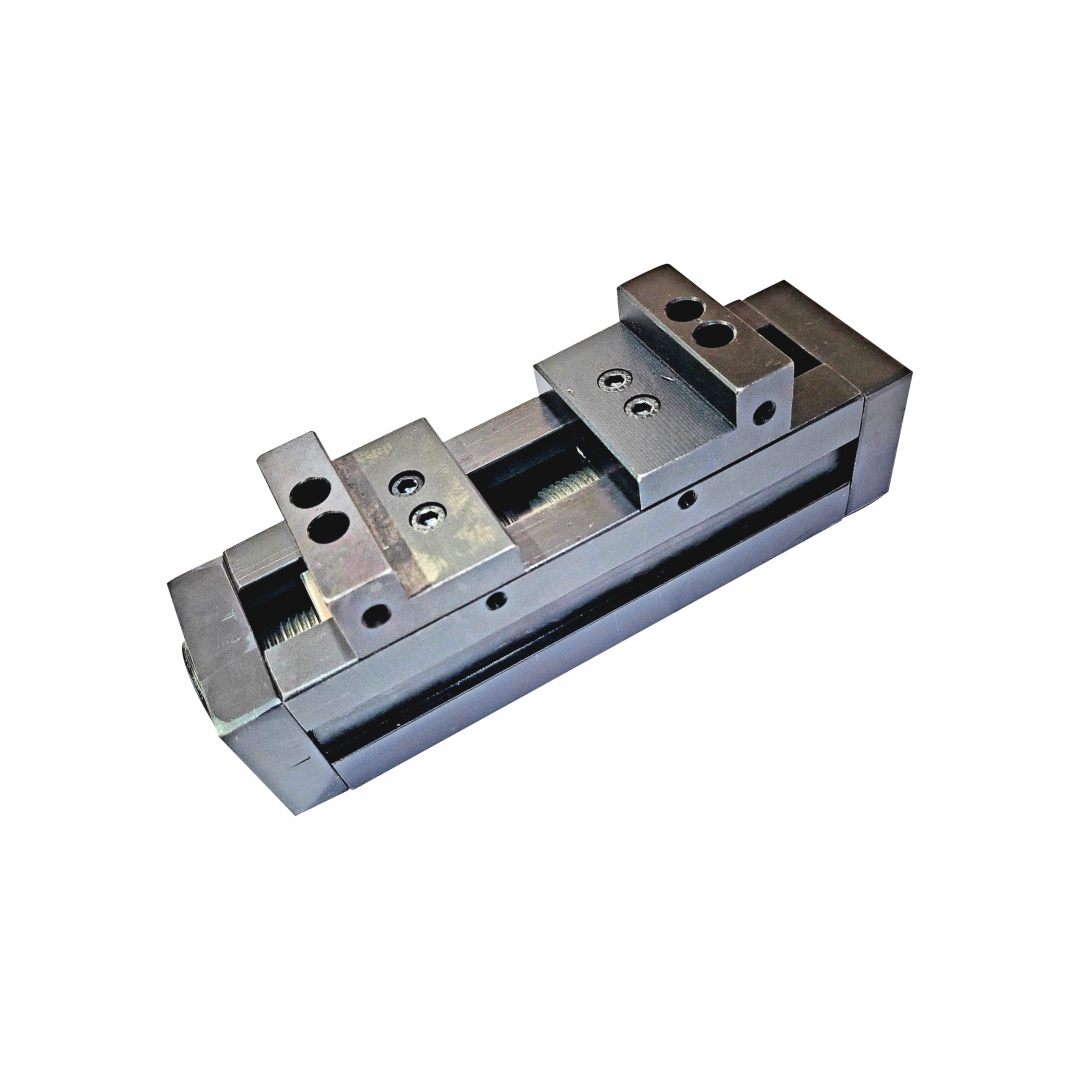

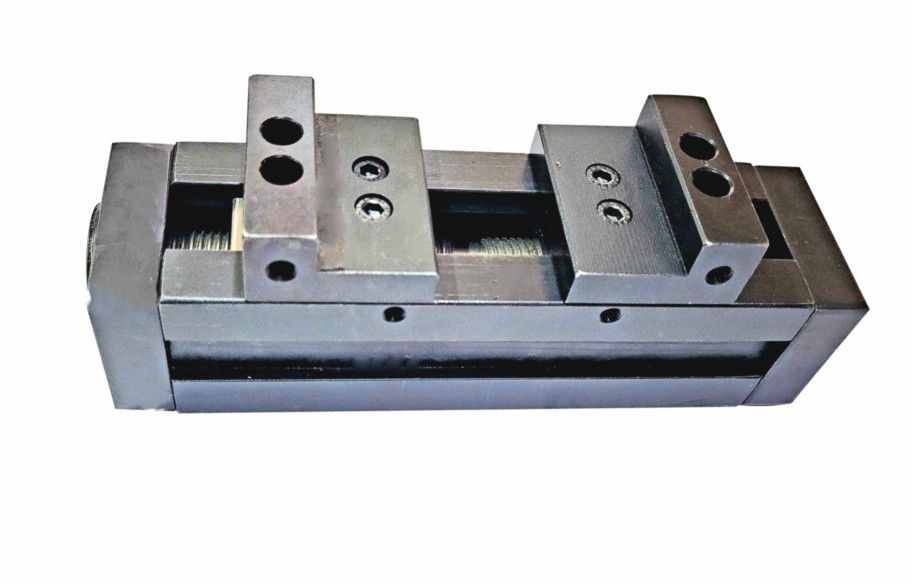

Self-Centering Vise - W100

You are here : All products > Precision Vise > Self Centering Vise > Self-Centering Vise - W100

Information

Self-Centering Vises have been engineered to be the ideal solution for work holding for heavy machining. Available in sizes up to 300 mm widths, both jaws are moved simultaneously to maintain perfect positioning of job, these vises can accommodate a wide variety of workpiece. The special long box nut produced from wear resisting material feature to minimize jaw wear and to avoids component lift. Clamping is done mechanically through handle.

Models available - W100, W150, W200, W250 and W300.

MRP : 6500/- + (GST 18% Extra)

Offer price : 5000/- + (GST 18% Extra)

Ordering code : VC W100 0100

Available stock : 10

MOQ : 1 (Nos.)

Delivery days : 7

GSTIN : 27AQSPS2739Q1ZN

Create purchase order Place your enquiry

Share product - Self-Centering Vise - W100

More varients of Self Centering Vise

Multi-Tasking Vise

Self-Centering Vise - W150

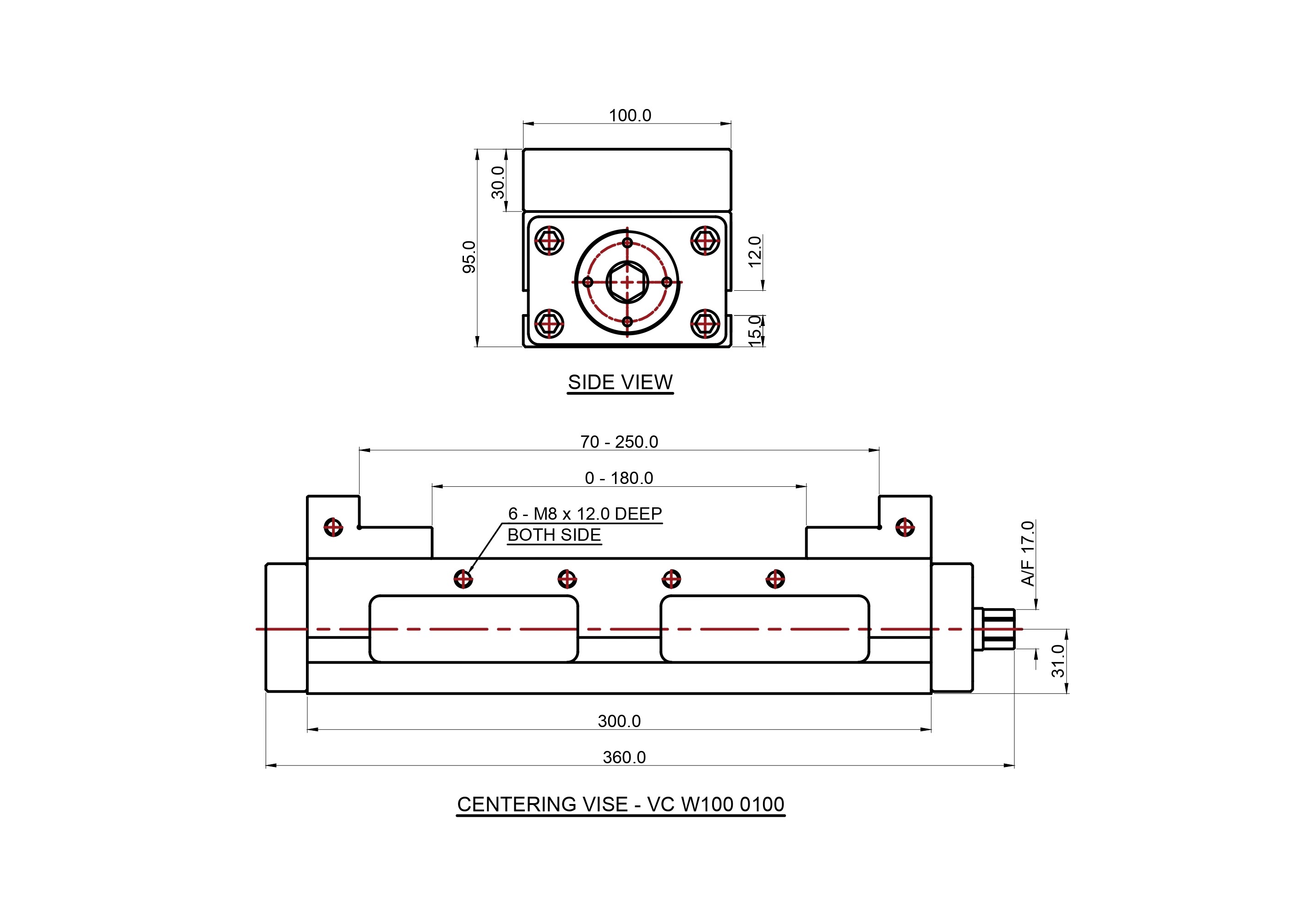

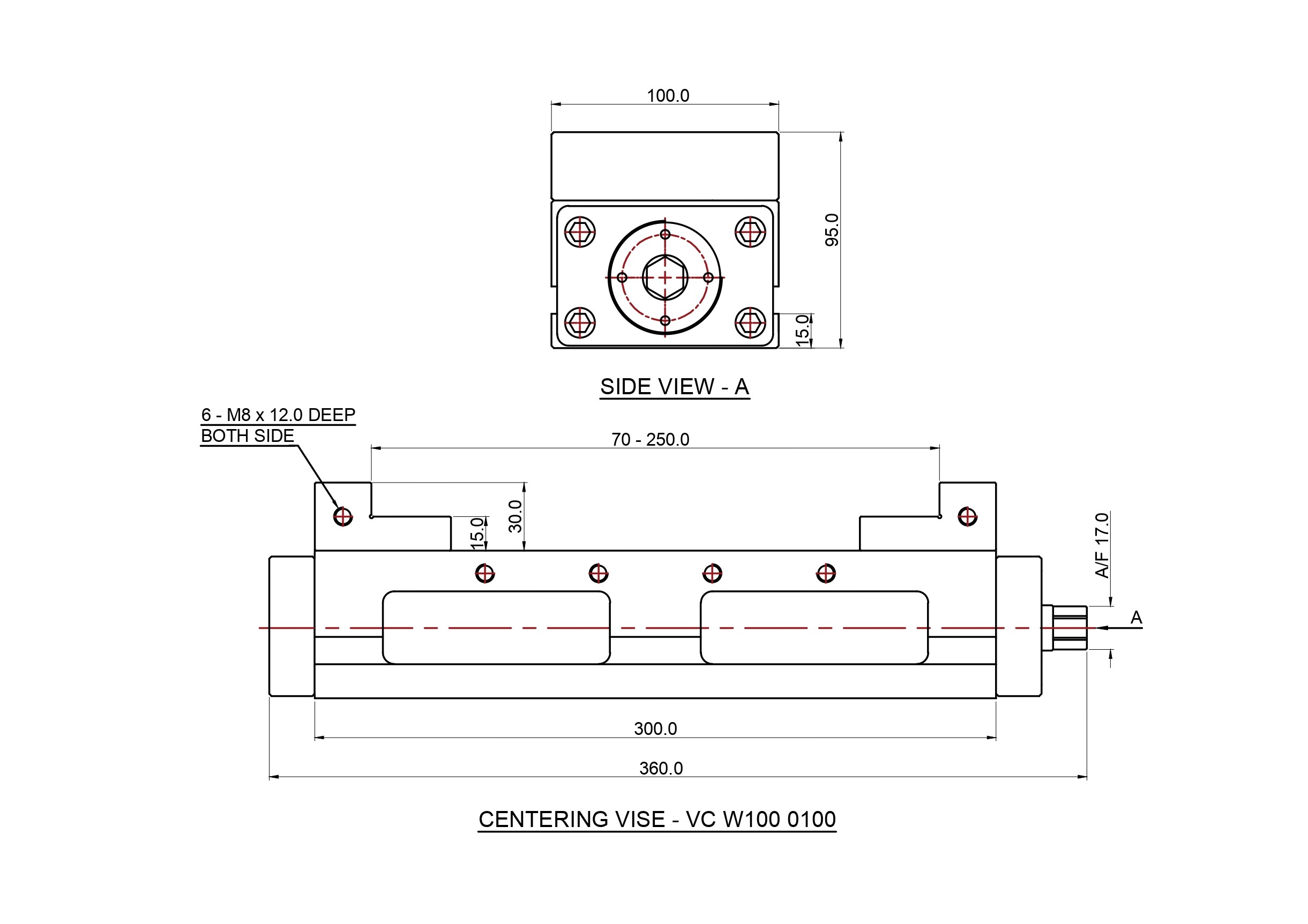

Technical specifications

Finish Weight in Kg	12.5
Overall Dimns. in mm	100 x 80 x 300
Clamping force	100 Kg
Operating Method	Mechanical, self-centering jaw
Maximum Jaw Opening	200 mm

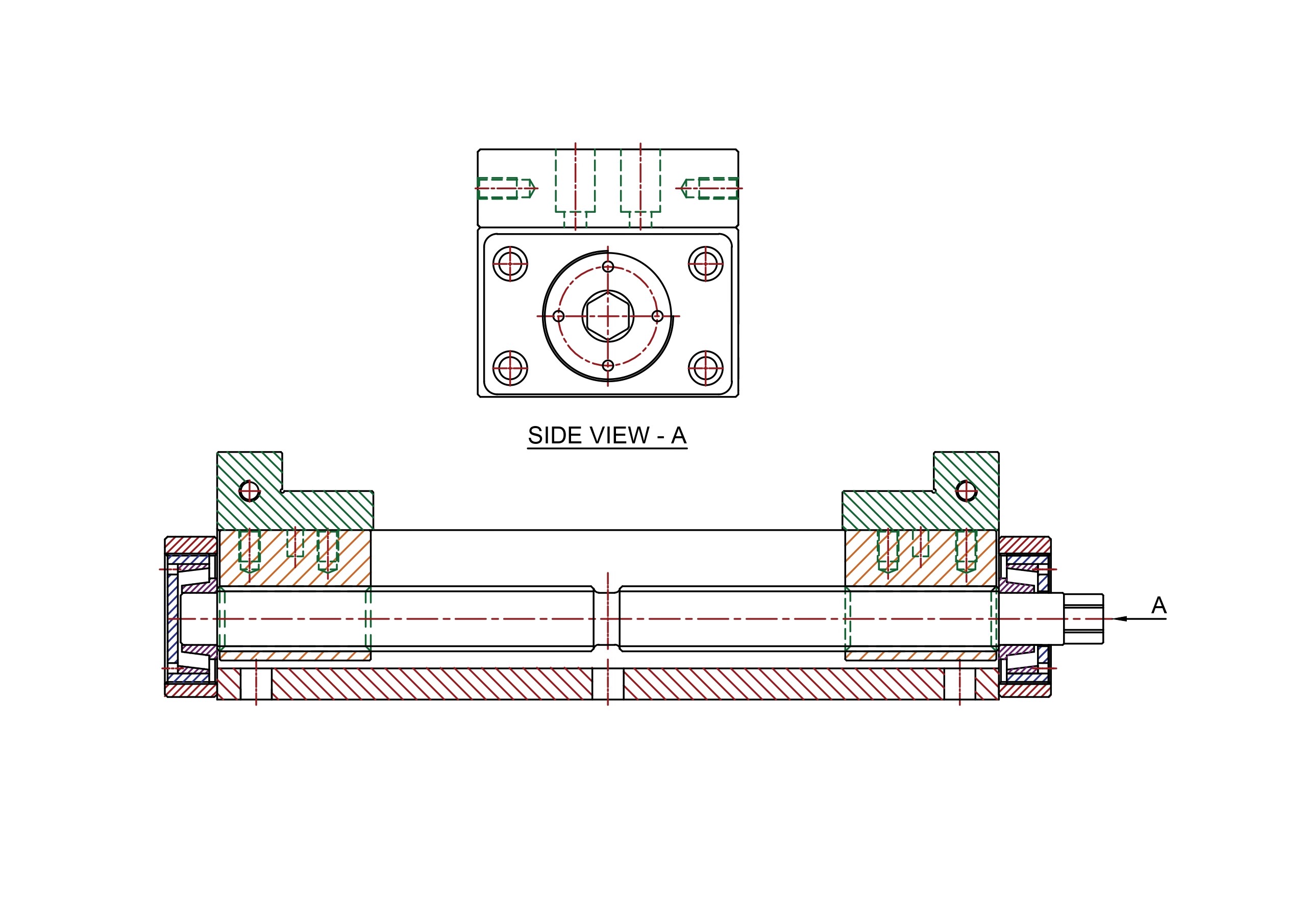

Working principle

1. The floating movable jaw allows a fast and safety clamping for rough pieces not perfectly parallels. Our precision modular Vise in the standard version is supplied with the guided movable jaw running parallel along the whole Vise base axis.

2. The fixed jaw can be turned around 180 degrees, and its back step matches with accuracy to the prismatic jaw step, in this way the maximum vice opening is increased.

3. Jaw plates manufactured with a pull-down angle, ensure, during the clamping operation, a downward run of the work piece against the vise base

Adjustable Vises are available in various sizes, and defined with base width or Jaw Width i.e. W100 = Base width or Jaw Width = 100 mm.

For your specific requirement contact us at - sales@prsverse.com

Product features

Hardened jaw construction

Alloy steel construction.

Repetitive fine accuracy

Trapezoidal Screw threads

Lead screw with roller bearing support

Minimum backlash construction

Material of construction

Components are manufactured from Alloy Steel

Manufactured from Cast steel and Rolled bars.

Components are treated for rust prevention.

Components are Treated for wear and Strength.

Raw materials from indigenous source only.

All bought out Items from reputed manufacturers.

Applications

Production Tool Room.

Manufacturing Production Shop.

CNC Lathe and Machining Centers.

Press Tool Machines.

Plastic Manufacturing Shops.
