VA - W200

You are here : All products > Precision Vise > Adjustable Vise > VA - W200

Information

Adjustable Vises have been engineered to be the ideal solution for low-profile work holding. Available in sizes 50 mm to 250mm widths, these vises can accommodate a wide variety of workpiece. The quick-change grip down jaws incorporates a pull-down feature to minimize jaw lift. Multiple jaw styles make this vise system configurable for most work holding needs.

Models available - W050, W100, W150, W200, W 250 and W300.

MRP : 15069/- + (GST 18% Extra)

Offer price : 15000/- + (GST 18% Extra)

Ordering code : VA W200 0100

Available stock : 2

MOQ : 1 (Nos.)

Delivery days : 30

GSTIN : 27AQSPS2739Q1ZN

Create purchase order Place your enquiry

Share product - VA - W200

More varients of Adjustable Vise

VA - W050

VA - W100

VA - W150

VA - W250

VA - W300

Technical specifications

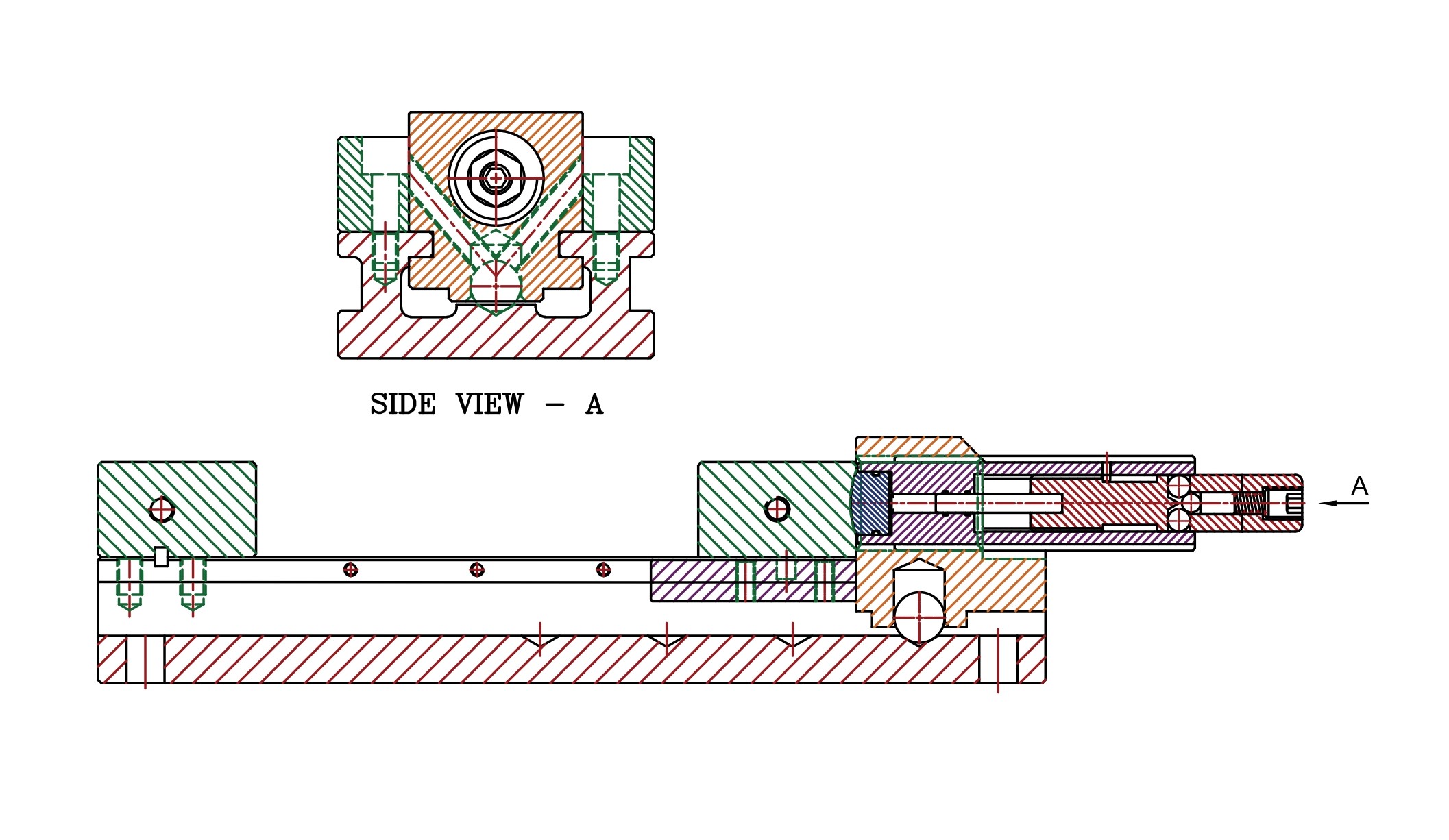

Working principle

1. The floating movable jaw allows a fast and safety clamping for rough pieces not perfectly parallels. Our precision modular Vise in the standard version is supplied with the guided movable jaw running parallel along the whole Vise base axis.

2. The fixed jaw can be turned around 180 degrees, and its back step matches with accuracy to the prismatic jaw step, in this way the maximum vice opening is increased.

3. Jaw plates manufactured with a pull-down angle, ensure, during the clamping operation, a downward run of the work piece against the vise base

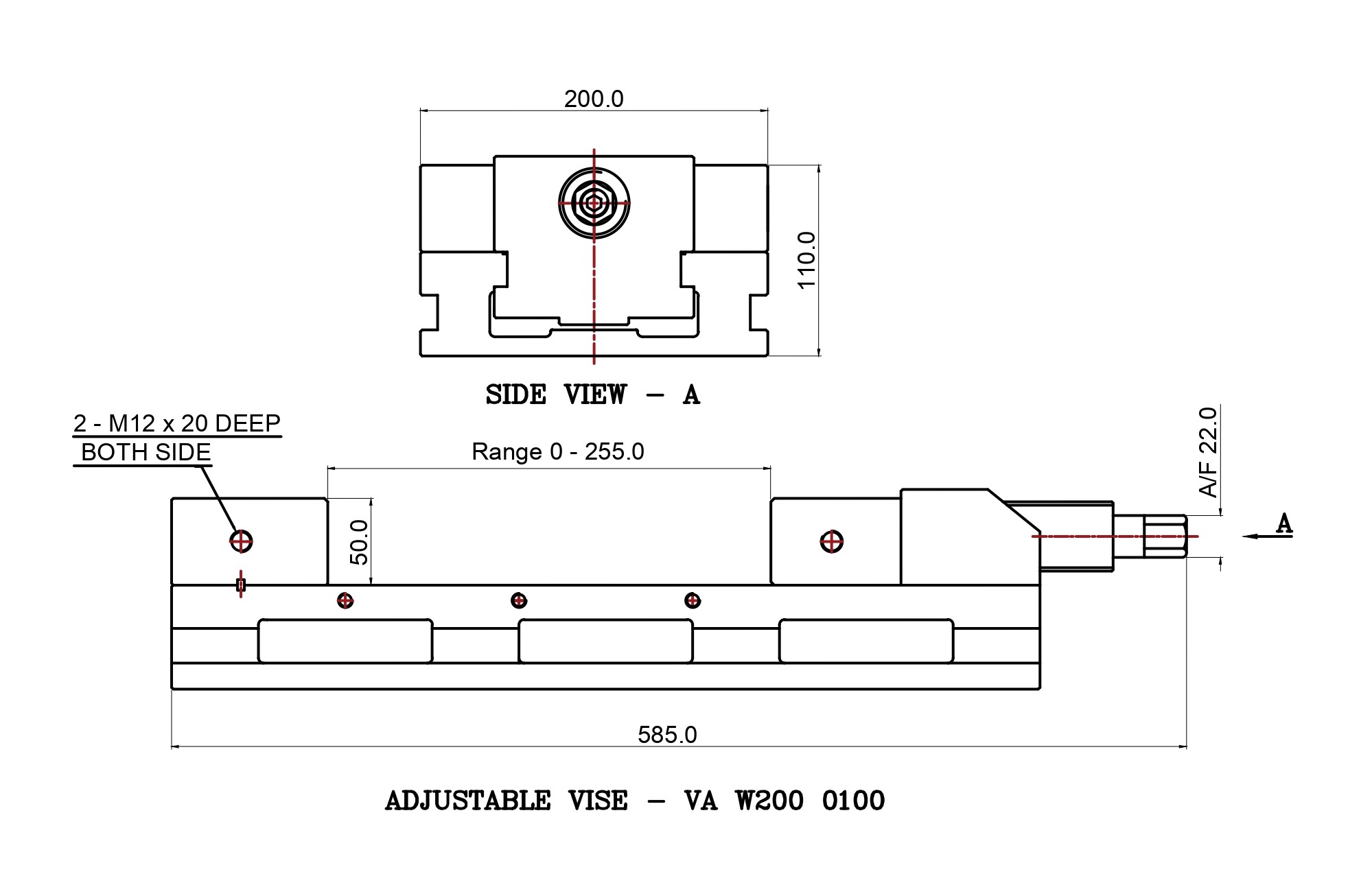

Adjustable Vises are available in various sizes, and defined with base width or Jaw Width i.e. W100 = Base width or Jaw Width = 100 mm.

For your specific requirement contact us at - sales@prsverse.com

Product features

Material of construction

Applications
