Wedge Vise - W75

You are here : All products > Precision Vise > Wedge Vise > Wedge Vise - W75

Information

All Vise surfaces are precision ground. The movable jaw is slightly narrow than the base enabling the vises to be used on either side in addition to the base. Clamping and releasing is through a threaded spindle with precision cut threads for smooth operation. Vise spindle moves in a specially designed gun metal bush which reduces wear thus enhancing the life of the vise. Fix Jaw side threaded for clamp support

Used in tool manufacturing, on grinding, milling, and jig boring machines for measurement an inspection work and in manufacturing processes that require highest standards of clamping accuracy.

Models available - W50, W75 and W100.

MRP : 8500/- + (GST 18% Extra)

Offer price : 7000/- + (GST 18% Extra)

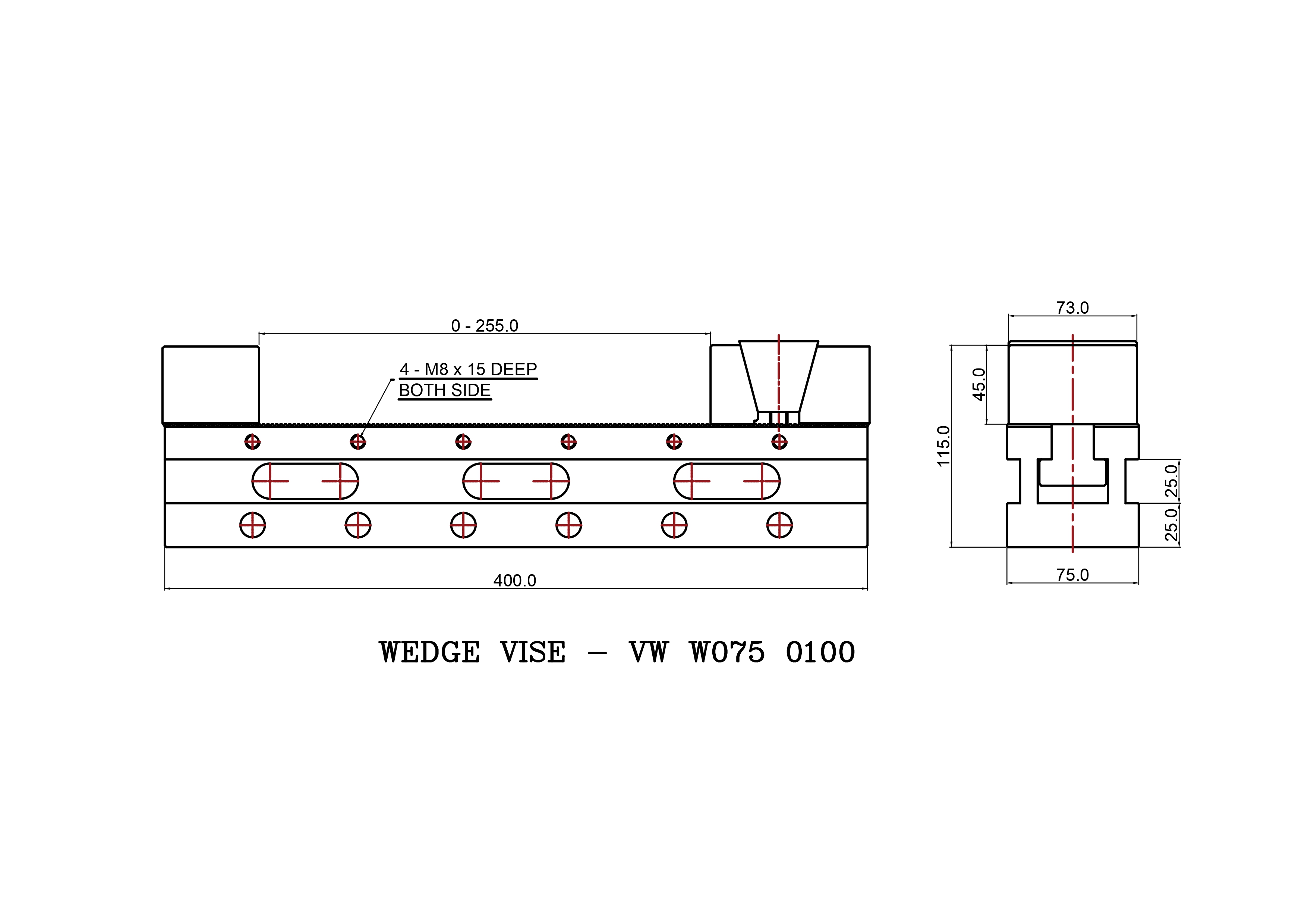

Ordering code : VW W075 0100

Available stock : 10

MOQ : 2 (Nos.)

Delivery days : 7

GSTIN : 27AQSPS2739Q1ZN

Create purchase order Place your enquiry

Share product - Wedge Vise - W75

Technical specifications

Total Finish Weight in Kg	75x 130 x 300
Finish Weight in Kg	10.6
Clamping force	100 Kg
Operating Method	Mechanical, wedge
Maximum Jaw Opening	Variable

Working principle

Construction: Manufactured from Selected alloy Steel, these solid one piece vises are fully hardened (45-50 HRC) and tempered to ensure stability and durability.

Accuracy: Parallelism: 0.015 max (15 Microns) Perpendicularity: 0.015 max (15 Microns)

Adjustable Vises are available in various sizes, and defined with base width or Jaw Width i.e. W75 = Base width or Jaw Width = 75 mm.

For your specific requirement contact us at - sales@prsverse.com

Product features

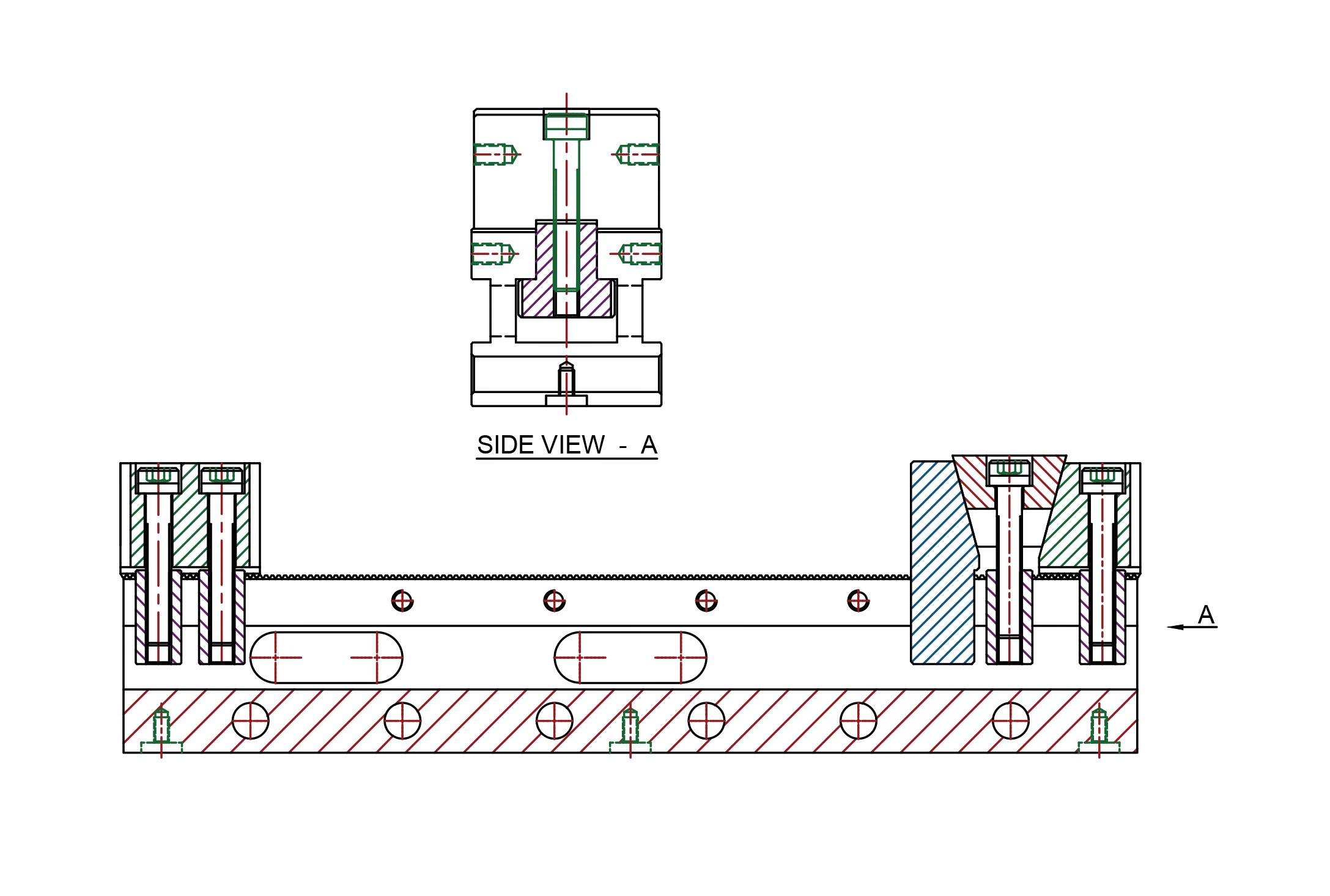

Wedge type jaw construction

Alloy steel construction.

Repetitive fine accuracy

Minimum backlash construction

Material of construction

Components are manufactured from Alloy Steel

Manufactured from Cast steel and Rolled bars.

Components are treated for rust prevention.

Components are Treated for wear and Strength.

Raw materials from indigenous source only.

All bought out Items from reputed manufacturers.

Applications

Used in tool manufacturing, on grinding, milling, and jig boring machines for measurement an inspection work and in manufacturing processes that require highest standards of clamping accuracy.
