Information

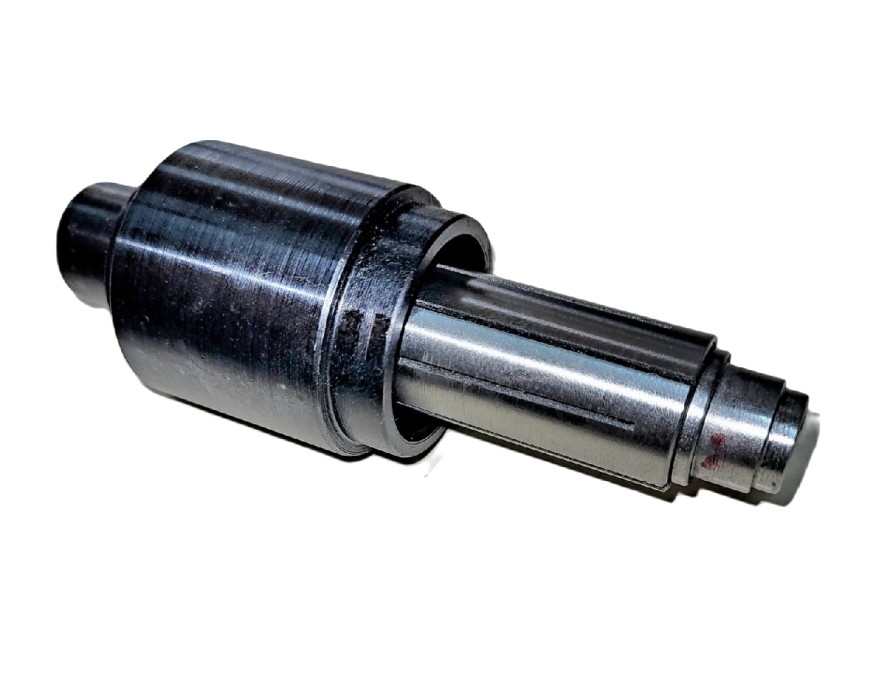

Configuration - The Taper Collet Centre Mandrel consists of a Centre mandrel body and a Taper Collet with a clamping nut. The Taper Collet Centre Mandrel is mounted between the centering tips. The Taper Collet is activated by turning the clamping nut.
Models available - D011, D014, D020 and D026.
MRP : 1200/- + (GST 18% Extra)
Offer price : 900/- + (GST 18% Extra)
Ordering code : MC D014 0100
Available stock : 10
MOQ : 1 (Nos.)
Delivery days : 7
| Finish Weight in Kg | 1.2 |
| Overall Dimns. in mm | 40 x 40 x 120 |
| Clamping force | 100 Kg |
| Operating Stroke | 5 mm |
Clamping principle - For clamping, the Taper Collet is pushed against the Centre mandrel body and radially expands over the cone of base body. The component is centered, pressed against the backstop and aligned flush. The cylindrical form of the component bore in the clamping area has to be smaller than the tolerance class IT7, independent of the component bore tolerance.
These mandrels are available in various sizes, and defined with maximum diameter capacity i.e. D014 = Capacity of mandrel diameter = 14 mm.
For your specific requirement contact us at - sales@prsverse.com
Components are manufactured from Alloy Steel
Components are Manufactured from Rolled bars.
Components are treated for rust prevention.
Components are Treated for wear and Strength.
Raw materials from indigenous source only.
All bought out Items from reputed manufacturers.
Lathe machines,
CNC Lathe machines
Cylindrical Grinding machines
Component inspection
