Information
Small Vise Elements allow you perfect clamping even of big workpieces which need the heaviest machining using the machine table as surface.
Small Vise elements are the best example of the extreme versatility of the small vise System.
Models available - W30, W35, W500, W60 and W75.
MRP : 300/- + (GST 18% Extra)
Offer price : 250/- + (GST 18% Extra)

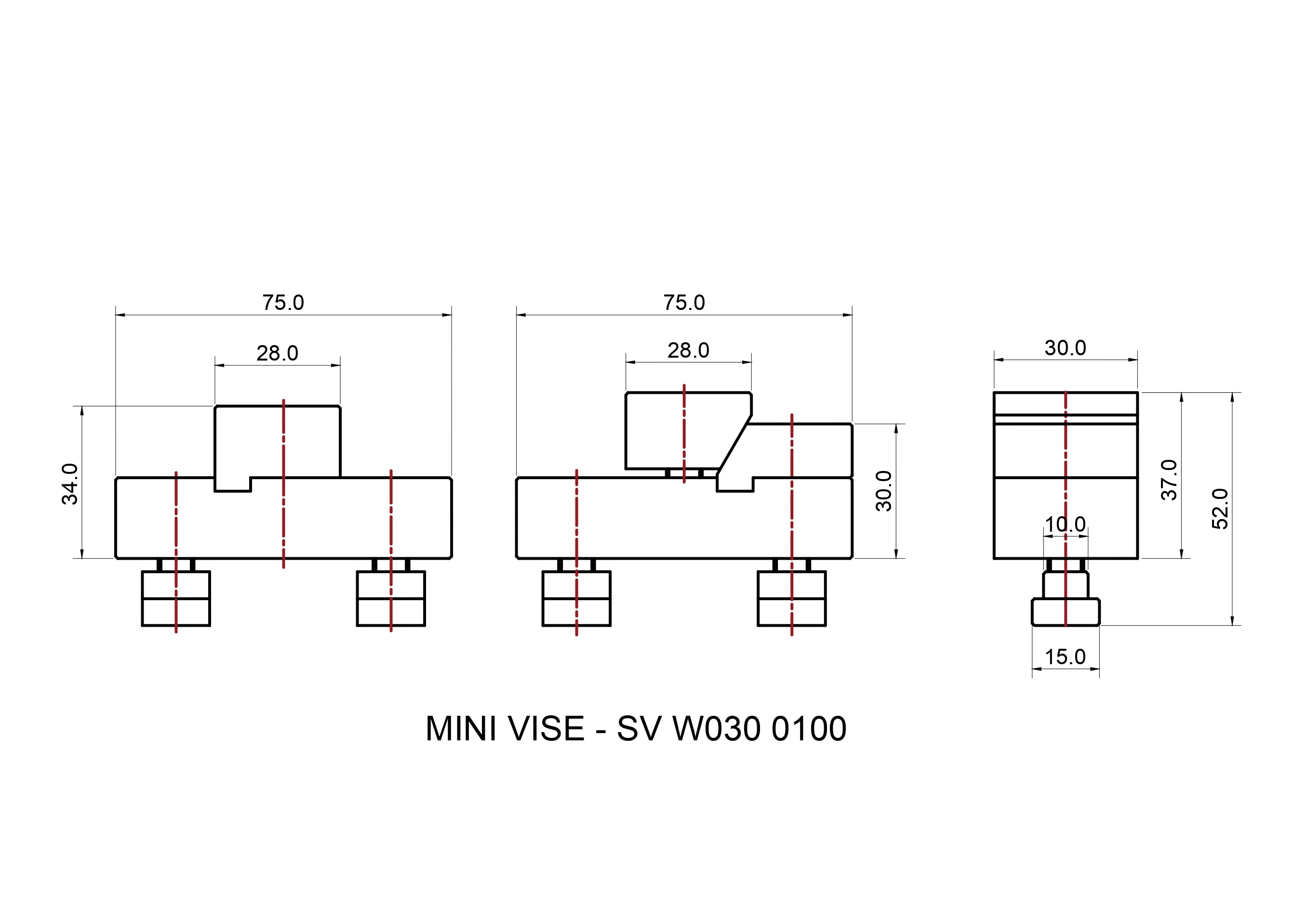

Ordering code : SV W030 0100
Available stock : 20
MOQ : 2 (Nos.)
Delivery days : 7
| Total Finish Wt. in Kg | 2.2 |
| Overall Dimns. in mm | 33 x 80 x 150 |
| Clamping force | 60 Kg |
| Operating Method | Mechanical |
| Maximum Jaw Opening | Variable |
The availability of the broadest assortment program allows to build with standard solutions even the fixtures that you thought special.
They are the ideal solution for a lot of applications and a perfect complement or alternative to single or double vises.

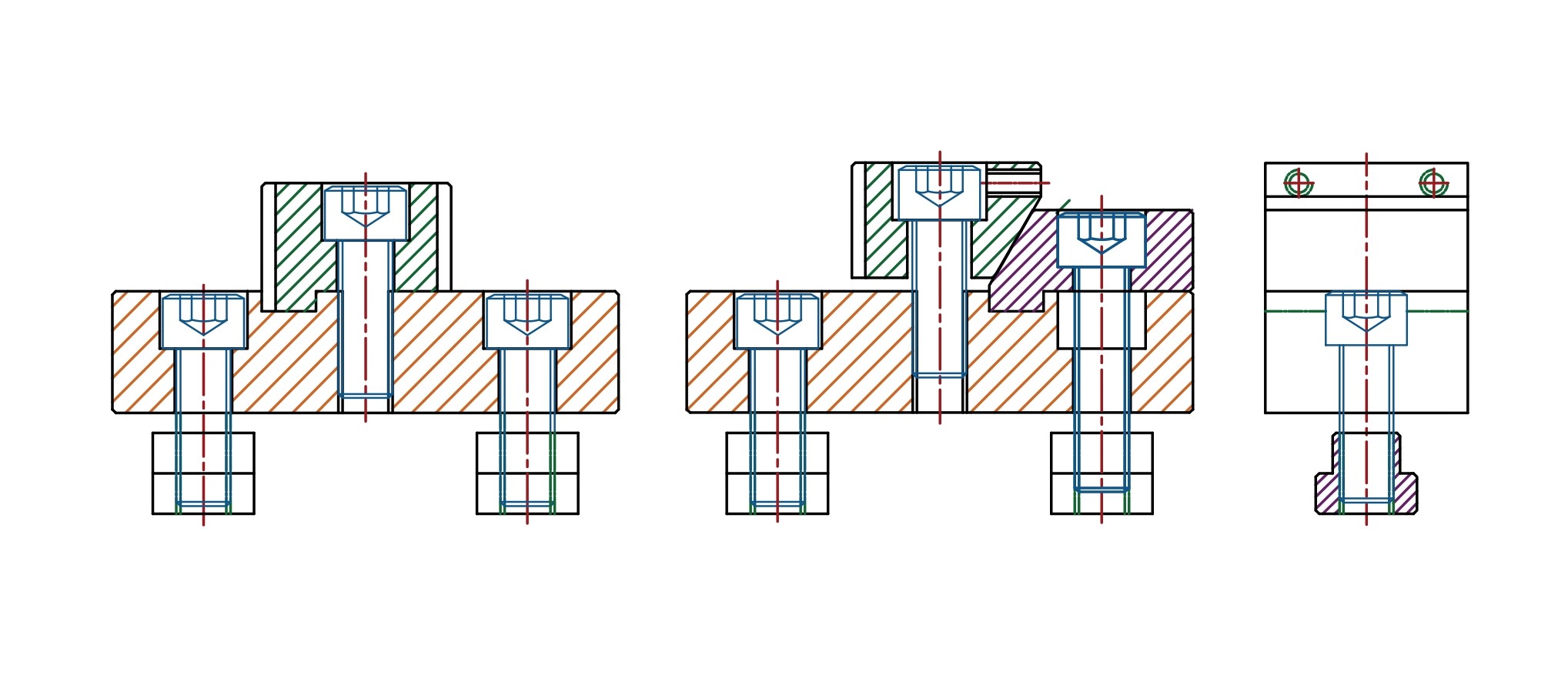

The clamping device sliding in the vise base slide till the proximity of the workpiece.
Modular Jaw Vises are available in various sizes, and defined with base width or Jaw Width i.e. W100 = Base width or Jaw Width = 100 mm.
For your specific requirement contact us at - sales@prsverse.com
Alloy steel construction.
Repetitive fine accuracy
Trapezoidal Screw threads
Lead screw with roller bearing support
Minimum backlash construction
Compact and Robust Design
Simple operation
Components are manufactured from Alloy Steel
Manufactured from Cast steel and Rolled bars.
Components are treated for rust prevention.
Components are Treated for wear and Strength.
Raw materials from indigenous source only.
All bought out Items from reputed manufacturers.
Production Tool Room.
Manufacturing Production Shop.
CNC Machining Centers.
Press Tool Machines.
Plastic Manufacturing Shops
