Multi-Tasking Vise

You are here : All products > Precision Vise > Self Centering Vise > Multi-Tasking Vise

Information

Multi-tasking Vises

MULTITASKING Vises for advanced applications on 5 axis machining centres, Jaws width from 75 to 140 mm. Direct vise set-up or through vise clamps.

Positioning through ground holes or keyways / Self-centering with possibility to clamping from outside to inside and vice versa.

Eccentric jaw adjustment in steps of 1 mm (Multi axis self-centering), Minimum deflection and overall dimensions.

Solid and rigid construction and maximum clamping ratio to the total length

Series of interchangeable jaws available or Solid jaws (integral with the slides) for highest rigidity.

Models available - W120 and W160.



MRP : 3500/- + (GST 18% Extra)

Offer price : 2490/- + (GST 18% Extra)

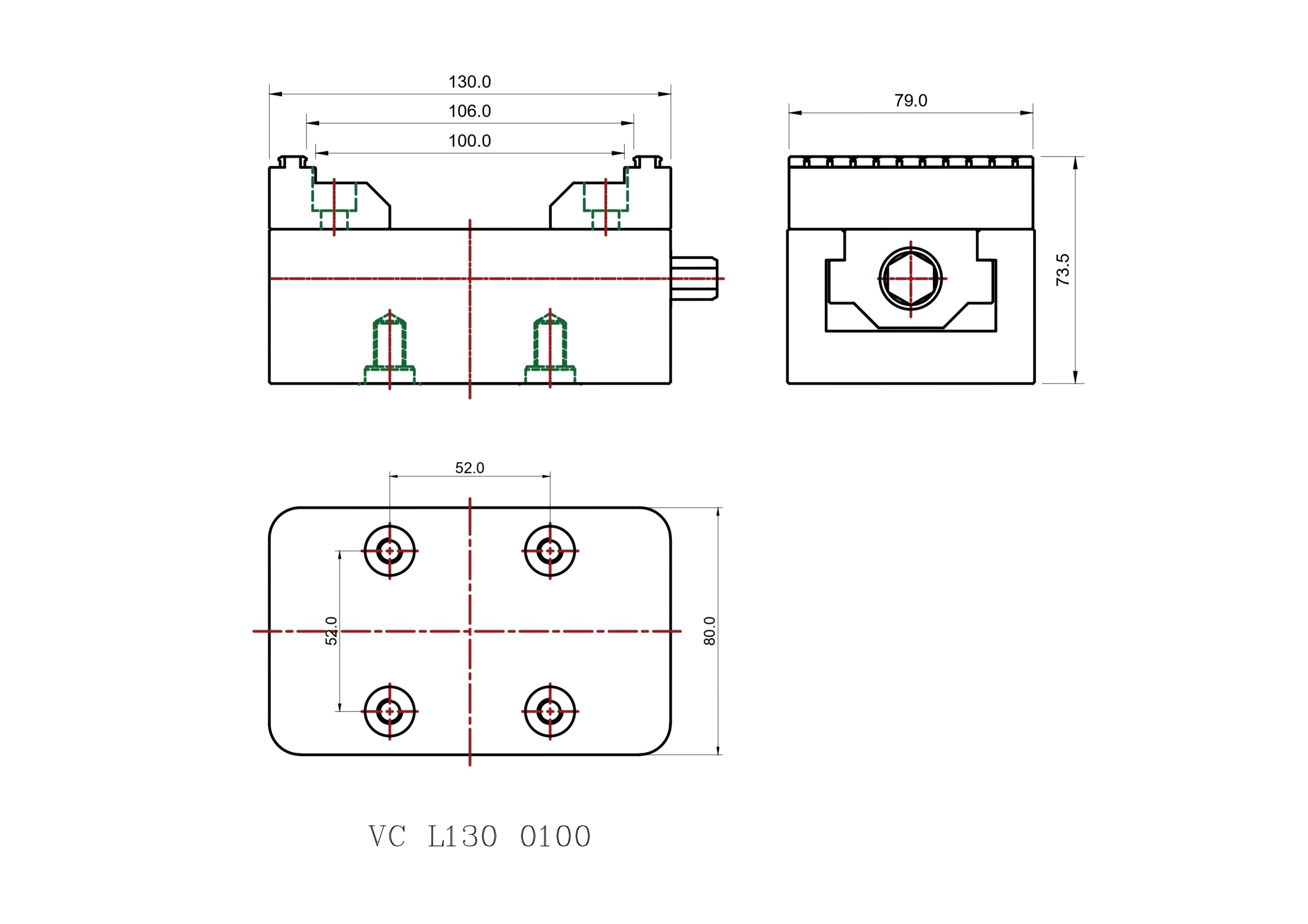

Ordering code : VC L130 0100

Available stock : 10

MOQ : 2 (Nos.)

Delivery days : 7

Share product - Multi-Tasking Vise

More varients of Self Centering Vise

Technical specifications

Finish Weight in Kg 4.2
Overall Dimns. in mm 140 x 140 x 90
Clamping force 100 Kg
Operating Method Mechanical, self-centering jaw
Maximum Jaw Opening 60 mm

Working principle

Self-Centering Vises have been engineered to be the ideal solution for work holding for heavy machining. Available in sizes up to 300 mm widths, both jaws are moved simultaneously to maintain perfect positioning of job, these vises can accommodate a wide variety of workpiece. The special long box nut produced from wear resisting material feature to minimize jaw wear and to avoids component lift. Clamping is done mechanically through handle.

These Vises are available in various sizes, and defined with base width or Jaw Width i.e. W100 = Base width or Jaw Width = 100 mm.

For your specific requirement contact us at - sales@prsverse.com

Product features

Hardened jaw construction

Alloy steel construction.

Repetitive fine accuracy

Trapezoidal Screw threads

Lead screw with roller bearing support

Minimum backlash construction


Material of construction

Components are manufactured from Alloy Steel

Manufactured from Cast steel and Rolled bars.

Components are treated for rust prevention.

Components are Treated for wear and Strength.

Raw materials from indigenous source only.

All bought out Items from reputed manufacturers.

Applications

Production Tool Room.

Manufacturing Production Shop.

CNC Lathe and Machining Centers.

Press Tool Machines.

Plastic Manufacturing Shops.
