Precision Chamfering – Front and Back For back-chamfering or deburring on drill presses, CNC machines, tool or turret lathes, multi-spindle machines and jig boring machines. Consistently accurate back-chamfering, deburring, and back-countersinking for large diameters
MRP : 5600/- + (GST 18% Extra)
Offer price : 5500/- + (GST 18% Extra)

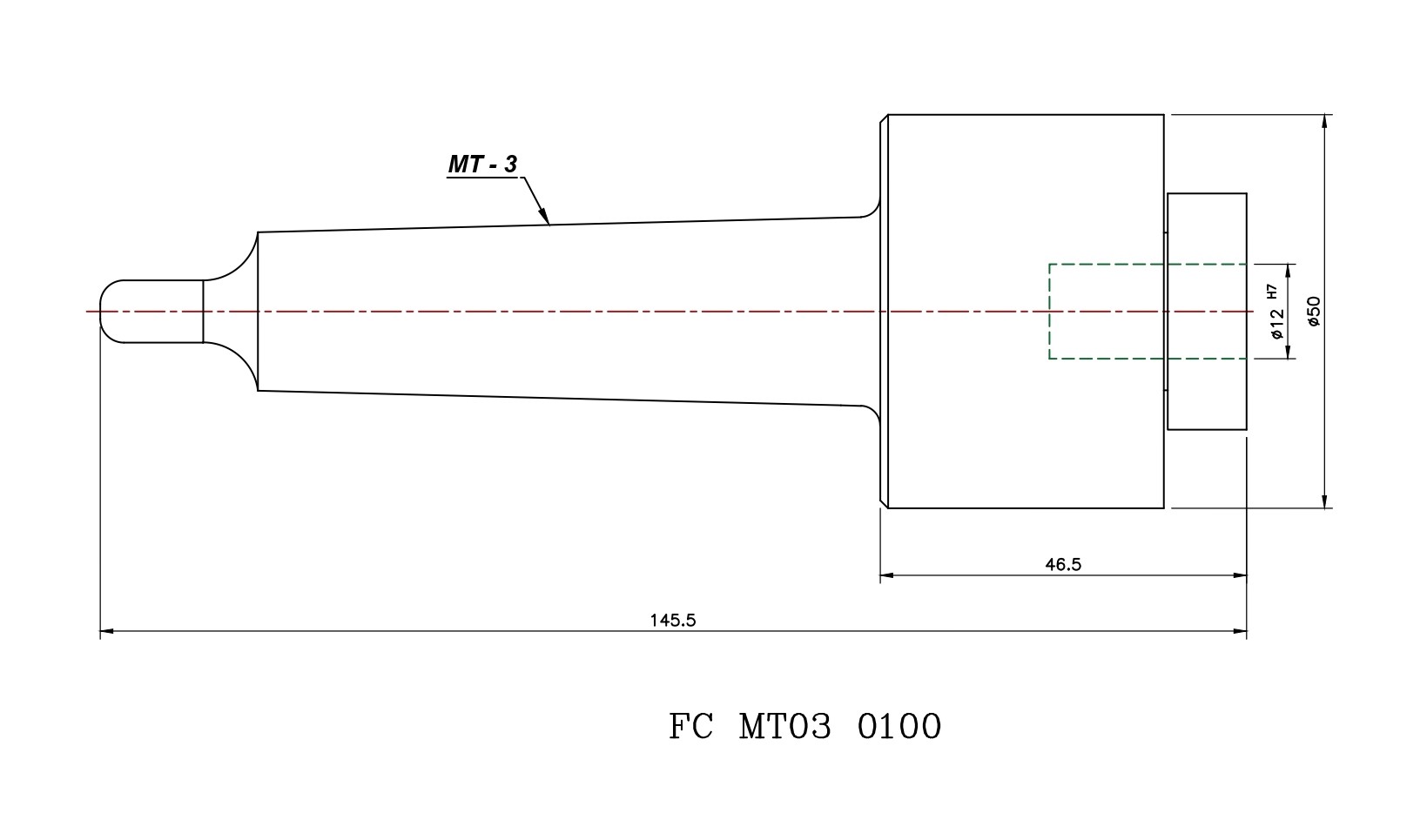

Ordering code : FC MT03 0100
Available stock : 3
MOQ : 1 (Nos.)
Delivery days : 15
lustrated below is the basic operating principle for the FC Precision Chamfering tool.
1 Piloting - The tool diameter pilots into the hole up to the pre-formed cam opposite to the cutting edge.
2 Actuation - The tool travels forward and is actuated by the cam, generating the back chamfer.
3 Chamfering - The tool continues to travel forward, forming the top chamfer
