Align Pad - M 16
Information

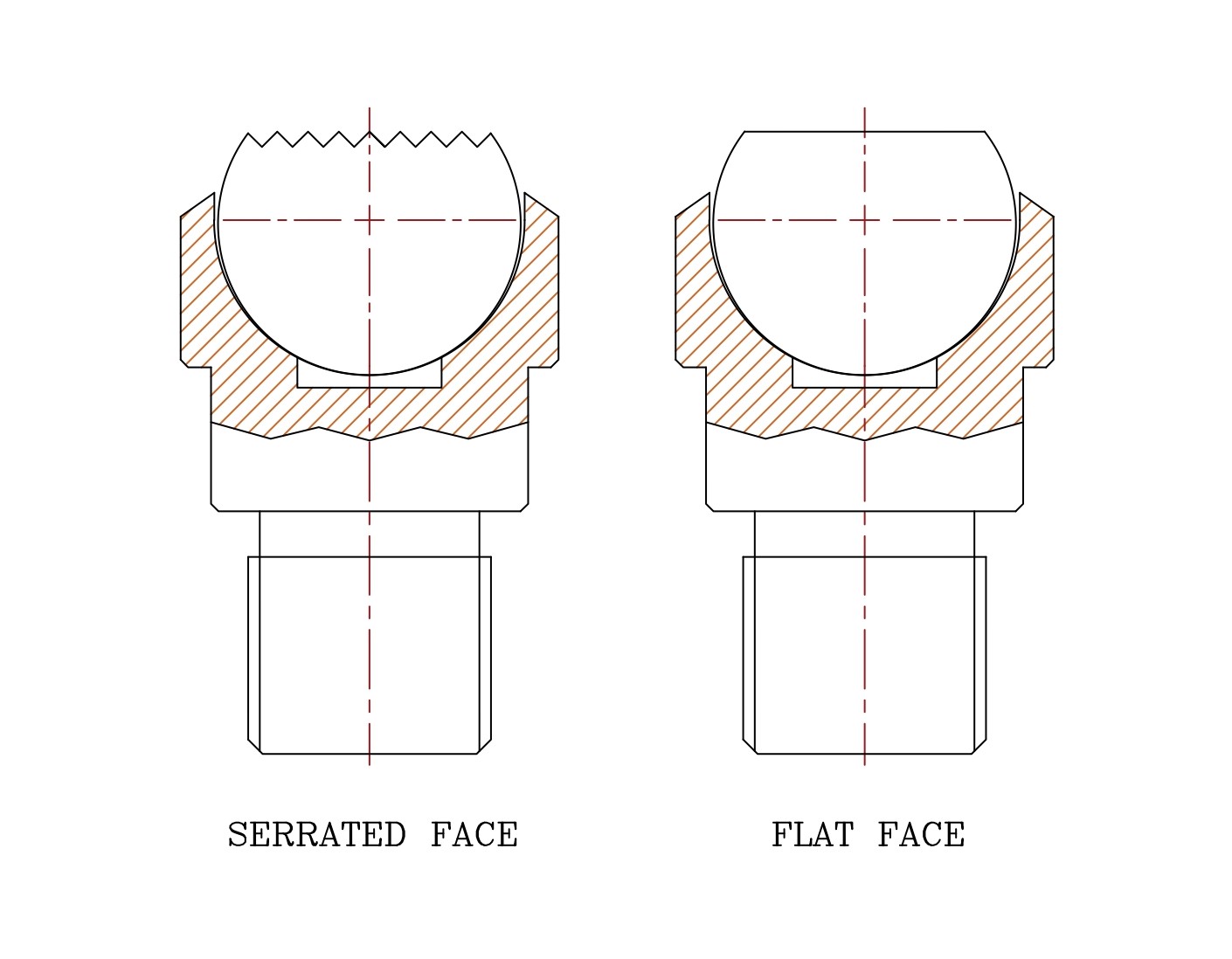

Self-aligning pads (oscillating elements with flat-faced ball) Self-aligning pads are used as stop, support and thrust pad and are suitable for installation in clamping elements.
By resetting to the parallel position, the contact point of the self-aligning pad provides a defined initial position, thus preventing the pad clamping in an oblique position when inserting the workpiece.
A self-aligning pad can be used in a wide range of industries for many applications, including clamping, tensioning or supporting even non-parallel surfaces. A self-aligning pad is used as a stop, support, plunger and can also be installed in clamping elements.
MRP : 590/- + (GST 18% Extra)
Offer price : 580/- + (GST 18% Extra)

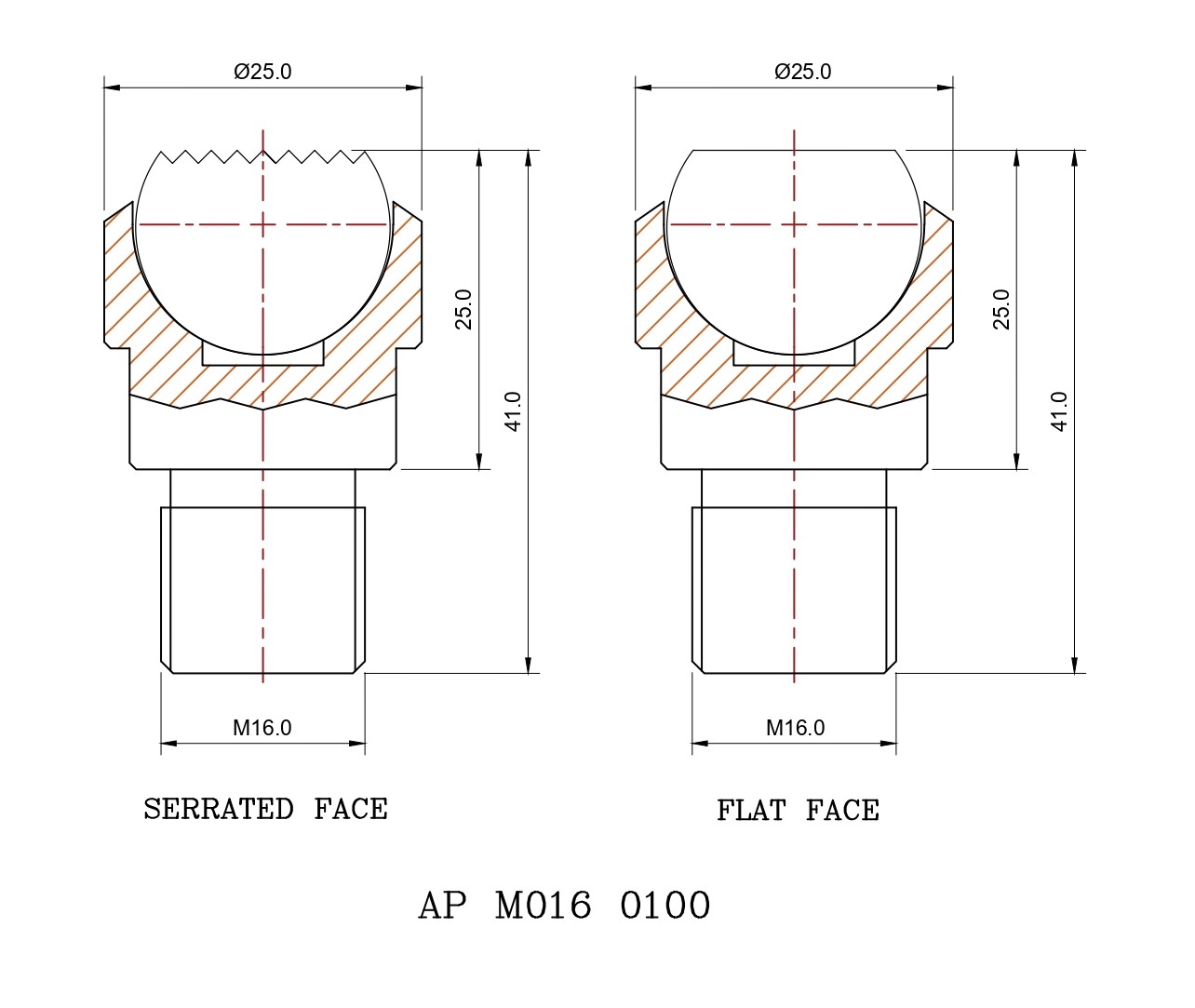

Ordering code : AP M016 0100
Available stock : 5
MOQ : 2 (Nos.)
Delivery days : 15
