CT - D 20 - ER 16

You are here : All products > CNC Attachments > Self-Centering Holder > CT - D 20 - ER 16

Information

Precision Chamfering – Front and Back For back-chamfering or deburring on drill presses, CNC machines, tool or turret lathes, multi-spindle machines and jig boring machines. Consistently accurate back-chamfering, deburring, and back-countersinking for diameters

Supplied with Set of - 5 Collets ER 16 of different Size -

Dia. 5 mm, Dia. 6 mm, Dia. 8 mm, Dia. 10 mm and Dia. 12 mm

MRP : 3982/- + (GST 18% Extra)

Offer price : 3800/- + (GST 18% Extra)

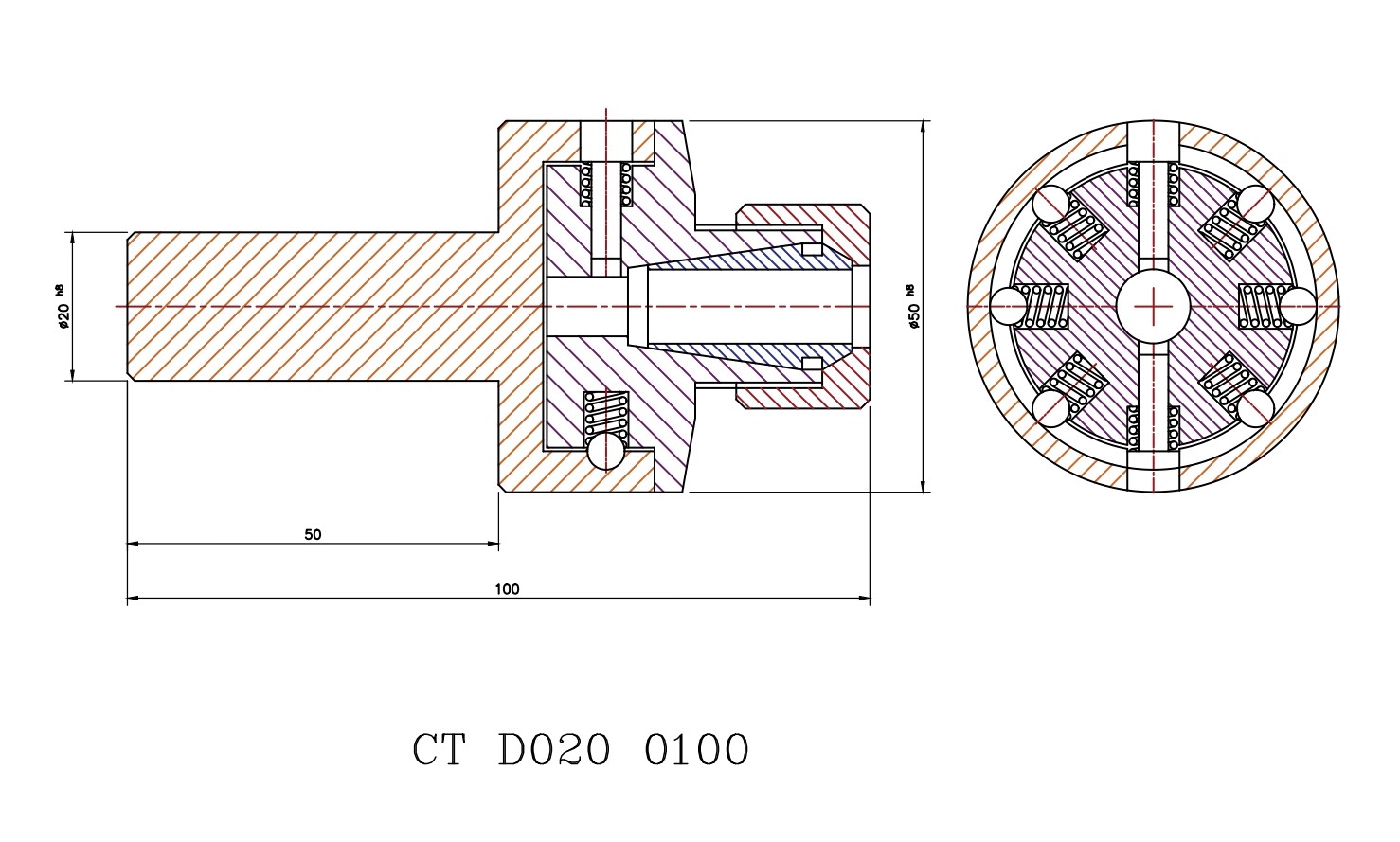

Ordering code : CT D020 0100

Available stock : 2

MOQ : 1 (Nos.)

Delivery days : 15

GSTIN : 27AQSPS2739Q1ZN

Create purchase order Place your enquiry

Share product - CT - D 20 - ER 16

More varients of Self-Centering Holder

CT - D 25 - ER 20

CT - D 32 - ER 25

CT - MT 2 (ER 16)

CT - MT 3 (ER 20)

CT - MT 4 (ER 25)

Technical specifications

Working principle

lustrated below is the basic operating principle for the CNF Precision Chamfering tool.

1 Piloting - The tool diameter pilots into the hole up to the pre-formed cam opposite to the cutting edge.

2 Actuation - The tool travels forward and is actuated by the cam, generating the back chamfer.

3 Chamfering - The tool continues to travel forward, forming the top chamfer

Product features

■ Fast cycle times

■ Available with high-speed steel or solid carbide cutters for diameters from 0.059 to 0.390 inch (1.50 to 9.90mm)

■ Tools for diameters of 10mm or larger use standard replaceable inserts for large diameters

Material of construction

Manufactured from alloy steel rolled bars / forgings.

Components are treated for performance and rust prevention.

Components are Treated for wear and Strength.

Raw materials from indigenous source only.

All bought out Items from reputed manufacturers

Applications

CH Tool performing front and back-chamfering operation using tool with modular holder

Front and Back For back-chamfering or deburring on drill presses, CNC machines, tool or turret lathes, multi-spindle machines and jig boring machines.
