FR - D 32 (ER 32)

You are here : All products > CNC Attachments > Floating Holders > FR - D 32 (ER 32)

Information

Floating holders are used on production machines like single-spindle lathes, multi-spindle lathes, NC machines, cnc milling machines, drills and transfer machines. They is mainly used for reaming operation and can also be used for rigid tapping. The free moving between two axial bearing allows tools to follow the existing drilled hole for high quality work. They can be supplied with vice taper fitting, metric cylindrical shaft fitting and morse taper fitting special fitting can be supplied on request.

Supplied with Set of - 5 Collets ER 32 of different Size -

Dia. 10 mm, Dia. 12 mm, Dia. 16 mm, Dia. 20 mm and Dia. 25 mm

MRP : 6450/- + (GST 18% Extra)

Offer price : 6400/- + (GST 18% Extra)

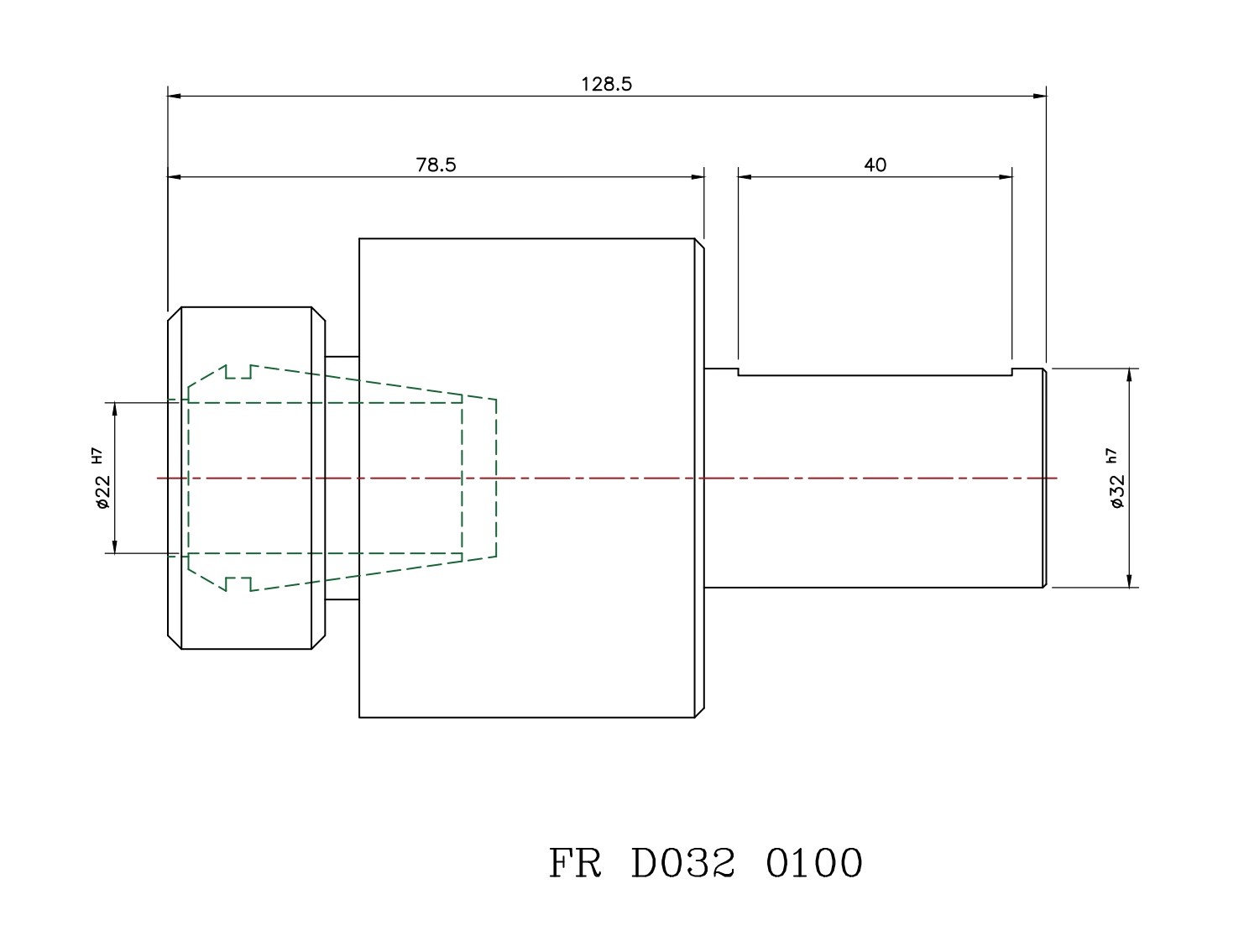

Ordering code : FR D032 0100

Available stock : 3

MOQ : 1 (Nos.)

Delivery days : 15

GSTIN : 27AQSPS2739Q1ZN

Create purchase order Place your enquiry

Share product - FR - D 32 (ER 32)

More varients of Floating Holders

FR - D 20 (ER 20)

FR - D 25 (ER 25)

FR - D 40 (ER 40)

FR - MT 3 (ER 20)

FR - MT 4 (ER 25)

FR - MT 4 (ER 32)

FR - MT 5 (ER 40)

Technical specifications

Working principle

Description and Specifications

Floating holders are produced with certified top quality steel, they are hardened and completely grinded. All production cycle is carried out in our factory in India with high precision machines and is carefully controlled. Thanks to the availability of stock, we can usually transport the material in the short time as order is received.

Further Information

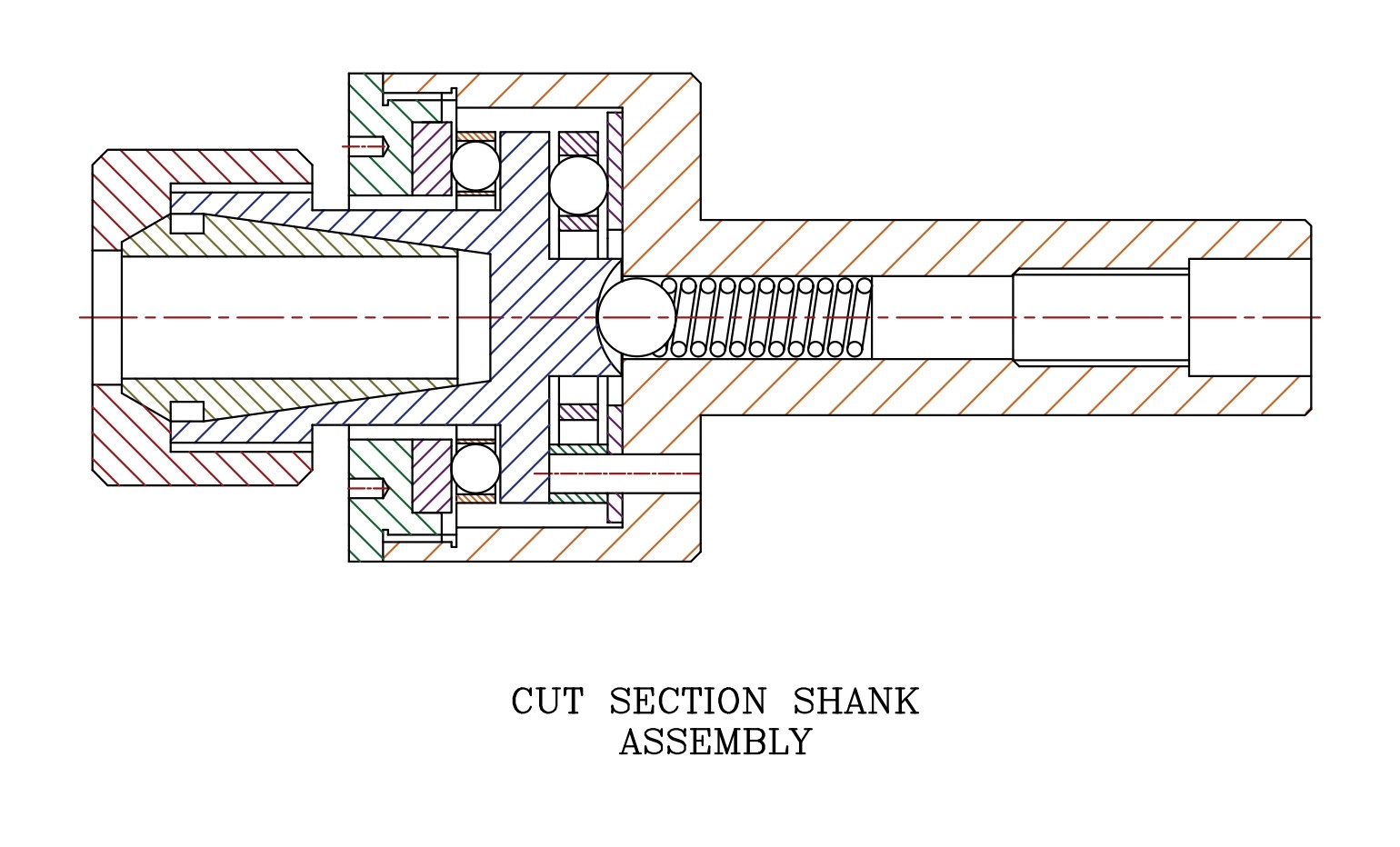

The floating holder is adjusted with a minimum axial float and the float of the tool is given by the radial oscillation. To keep the reamer in the center the tool holder is equipped with a self-centering pin pushed by a spring adjustable according to the size of the reamer mounted.

Product features

Accuracy: Floating holders allow the tool to self-align with the bore, which results in a more accurate result.

Consistency: Floating holders help to ensure that the tool will produce a consistent result throughout the entire process.

Reduced tool wear: Floating holders help to reduce tool wear by allowing the tool to float freely and avoid rubbing against the bore.

Increased productivity: Floating holders can help to increase productivity by reducing the time required to the entire process.

Material of construction

Manufactured from alloy steel rolled bars / forgings.

Components are treated for performance and rust prevention.

Components are Treated for wear and Strength.

Raw materials from indigenous source only.

All bought out Items from reputed manufacturers

Applications

Floating holders are a versatile and reliable type of tool holder that can be used for a variety of applications. If you are looking for a high-quality tool holder that will help you to achieve accurate and consistent results, then floating holders are a great option.
