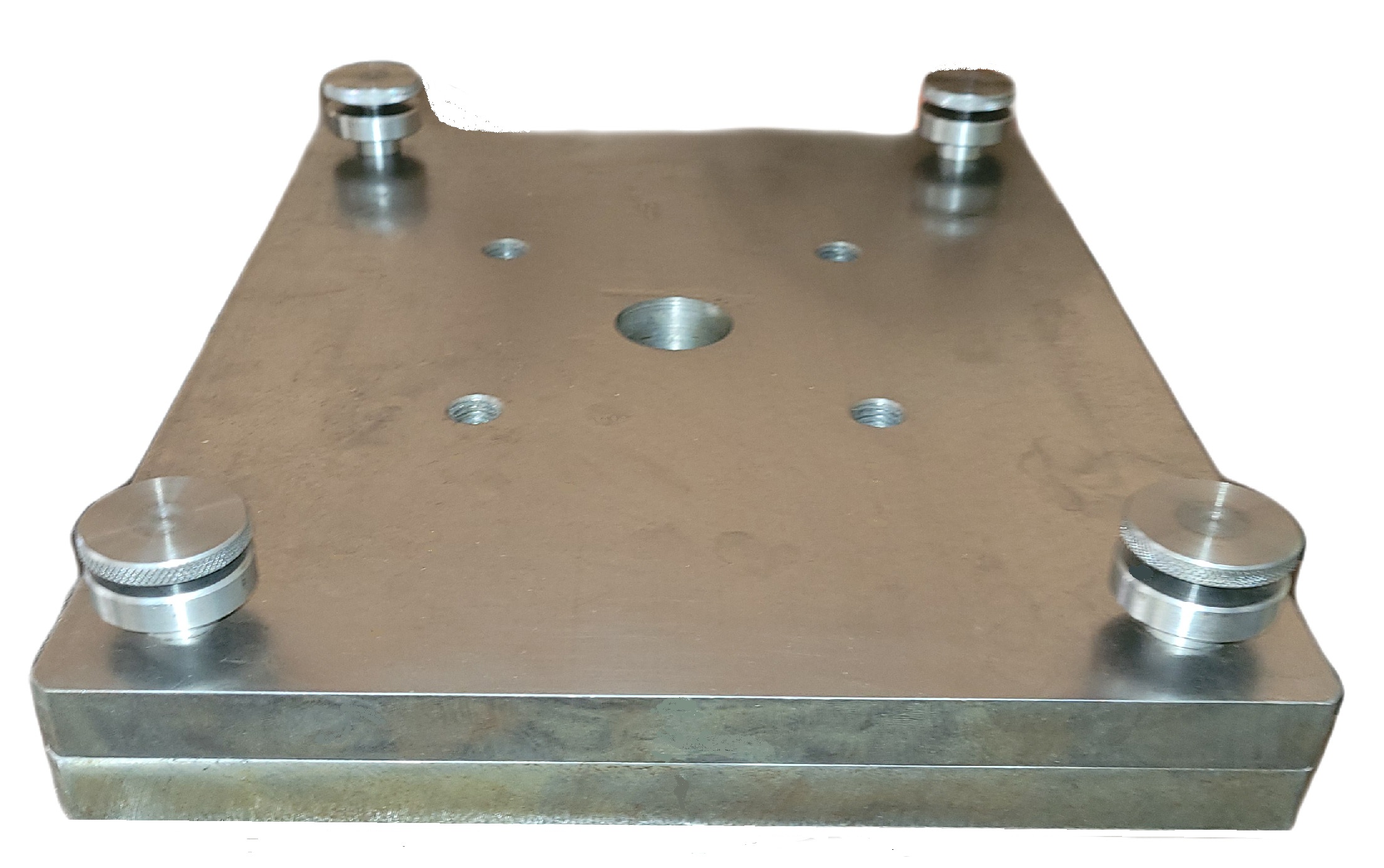

EL - 380 x 500

You are here : All products > Production Systems > Easy Lock System > EL - 380 x 500

Information

Easy lock is a pin with a knob that has a spherical projection (ball) at one end.

It is a type of quick-release mechanism that facilitates the fastening and removal of machines and equipment, and is used to temporarily fasten parts together.

Easy lock allows for very quick removal and installation of equipment and devices. When repeatedly joining parts together, it is convenient to temporarily fasten them without the use of other tools.

This increases the efficiency of maintenance and repair work. In addition, when properly secured, Easy lock Pins provide firm retention and secure fastening of equipment and devices. High-quality Easy lock Pins are also durable and can withstand long-term use.

However, the pin size must be compatible with the equipment or device being used. If not, the pin may not be properly secured or may be easily dislodged.

MRP : 19703/- + (GST 18% Extra)

Offer price : 18000/- + (GST 18% Extra)

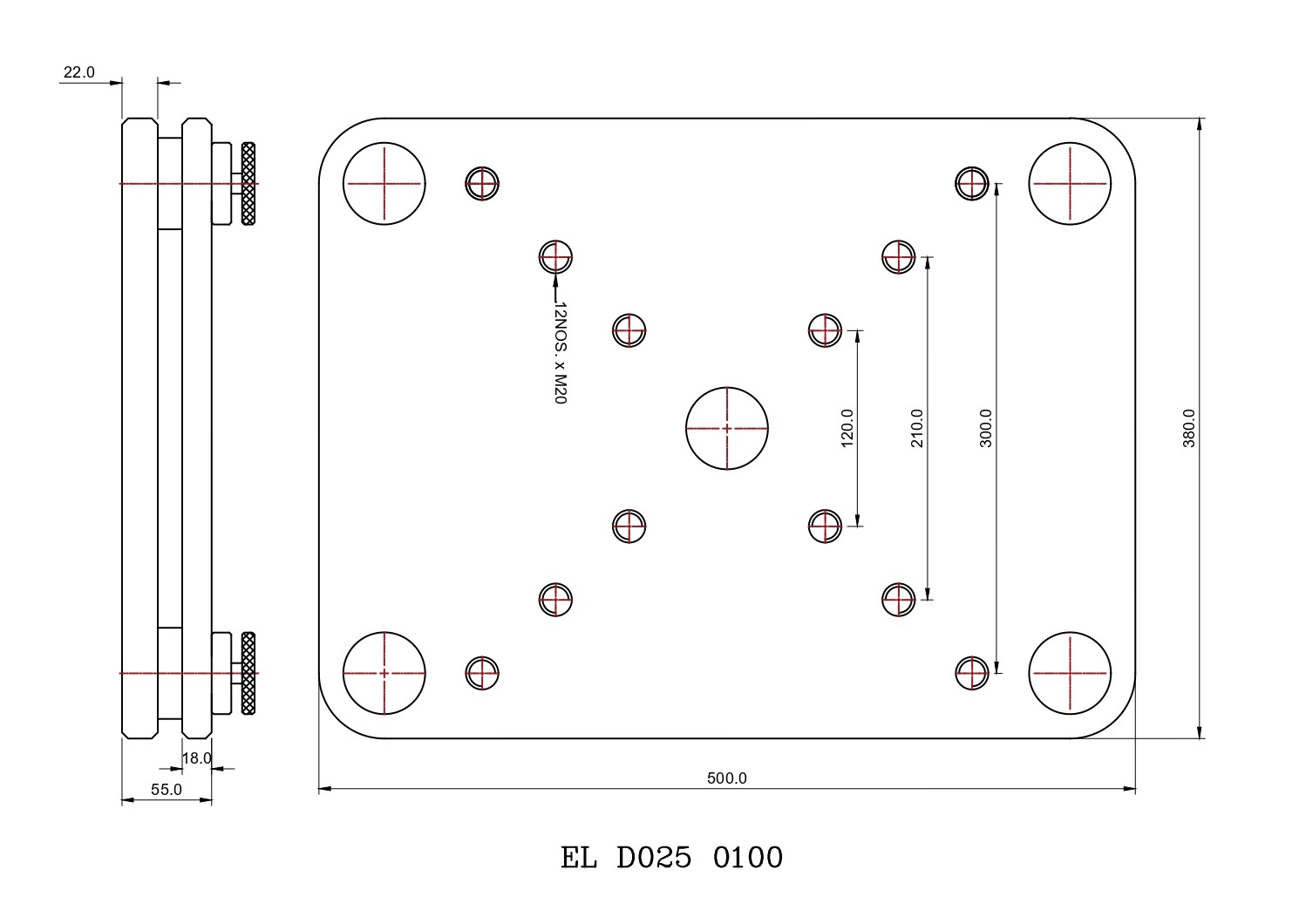

Ordering code : EL D025 0500

Available stock : 15

MOQ : 1 (Nos.)

Delivery days : 30

Share product - EL - 380 x 500

More varients of Easy Lock System

Technical specifications

Working principle

Easy lock Pin materials steel or stainless steel. It consists of three main parts: the ball, the pin shank, and the locking button screw.

Ball - The ball is a spherical shaped component. They are inserted into the pin's mounting points to hold the pin in place. The diameter and shape of the ball is designed to match the pin's intended use and load.

Shank - The pin shank is a cylindrical part. It holds the ball and controls its removal and installation.

The pin shank is designed to ensure that the ball fits in the hole and is also the part that manipulates the ball when securing the pin.

Button screw - The button screw is the part that controls the pin. It is attached at one end and serves to control and secure or release the ball. The button screw is operated by hand to move the ball, and the handle is often turned to secure the ball in the hole when the pin is attached.

Product features

Assembly lines, light-duty machining, packaging, and robotic systems.

CNC Machines

Injection Moulding

EDM Machines

Welding Fixtures

Packaging Machines

Material of construction

Components are manufactured from Alloy Steel

Components are Manufactured from Rolled bars.

Components are treated for rust prevention.

Components are Treated for wear and Strength.

Raw materials from indigenous source only.

All bought out Items from reputed manufacturers.

Applications

Robotic systems.

CNC Machines

EDM Machines

Welding Fixtures

Packaging Machines
