CM - ER 32
Information

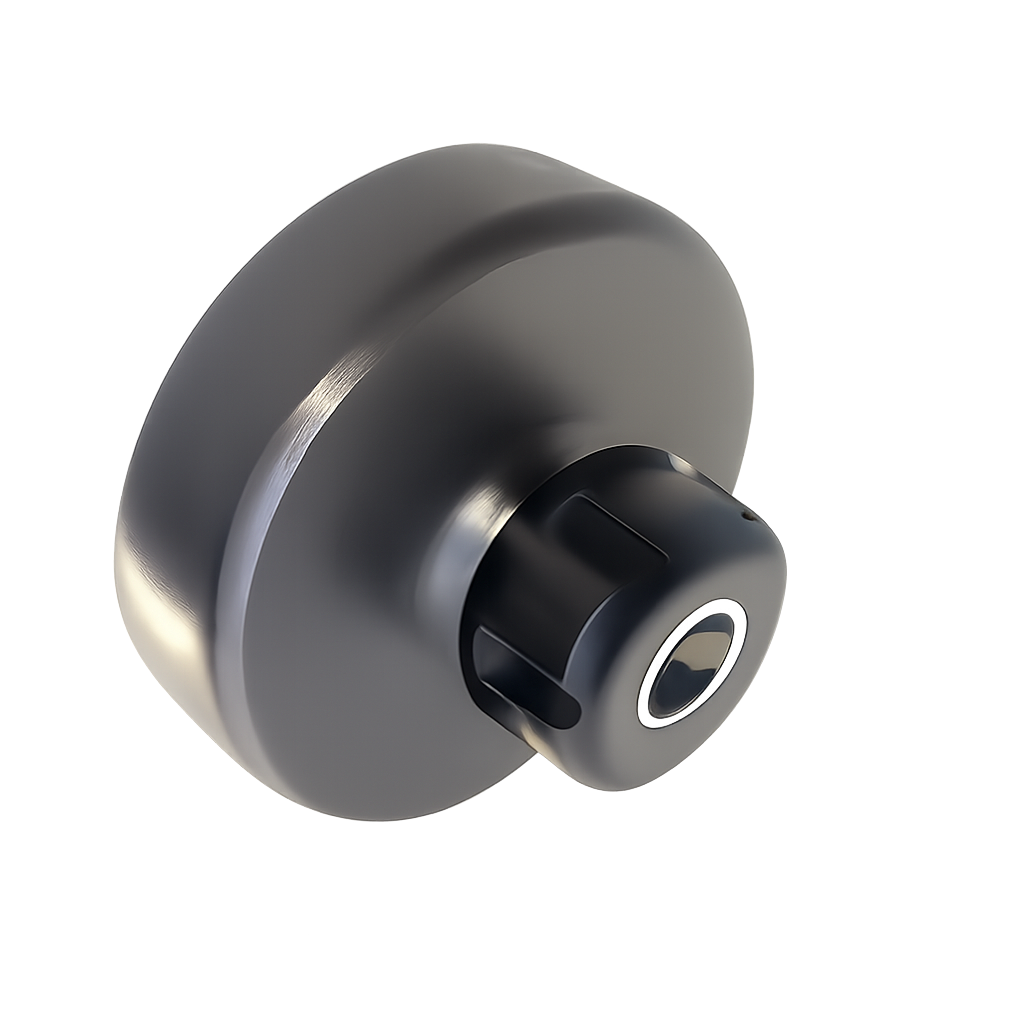

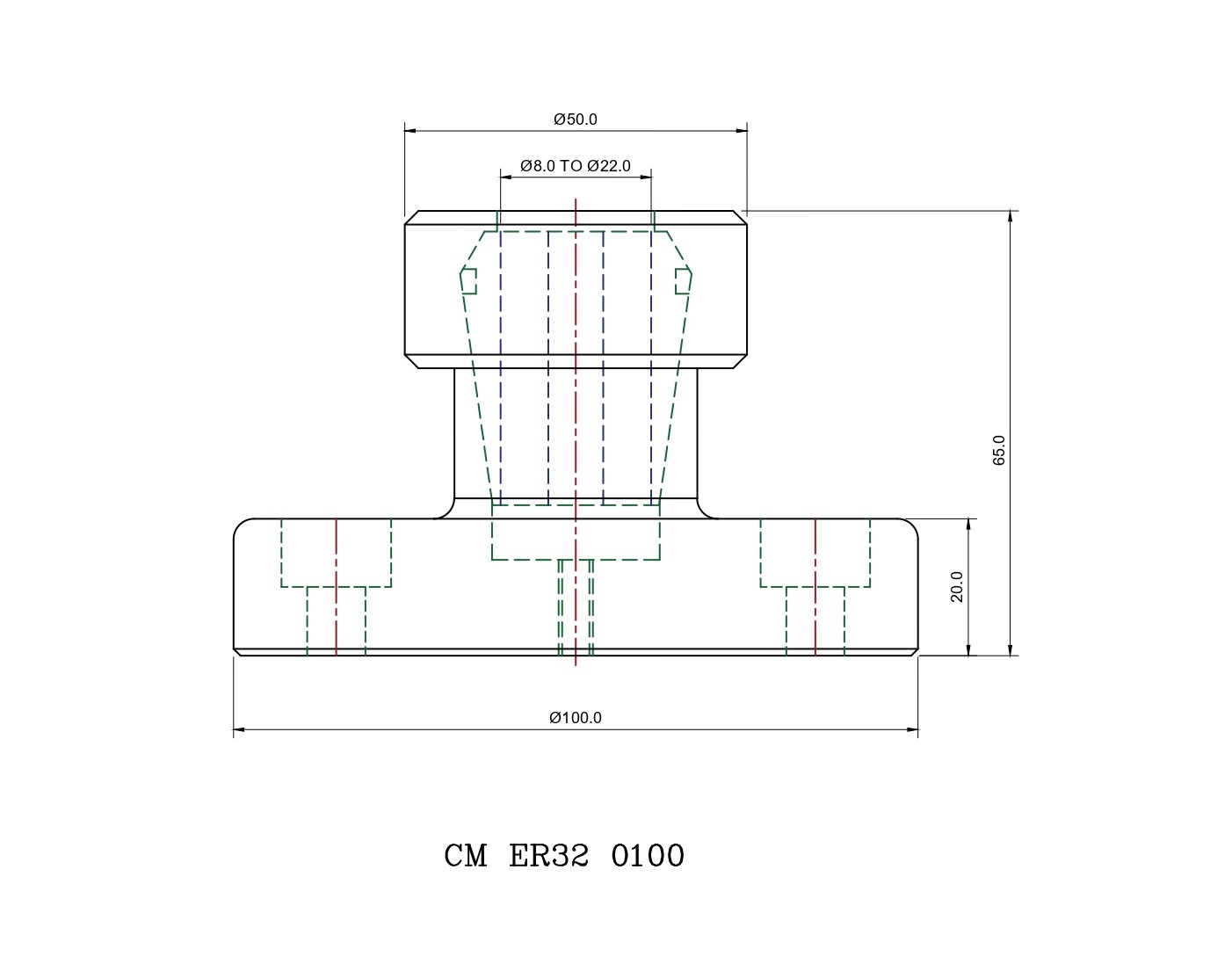

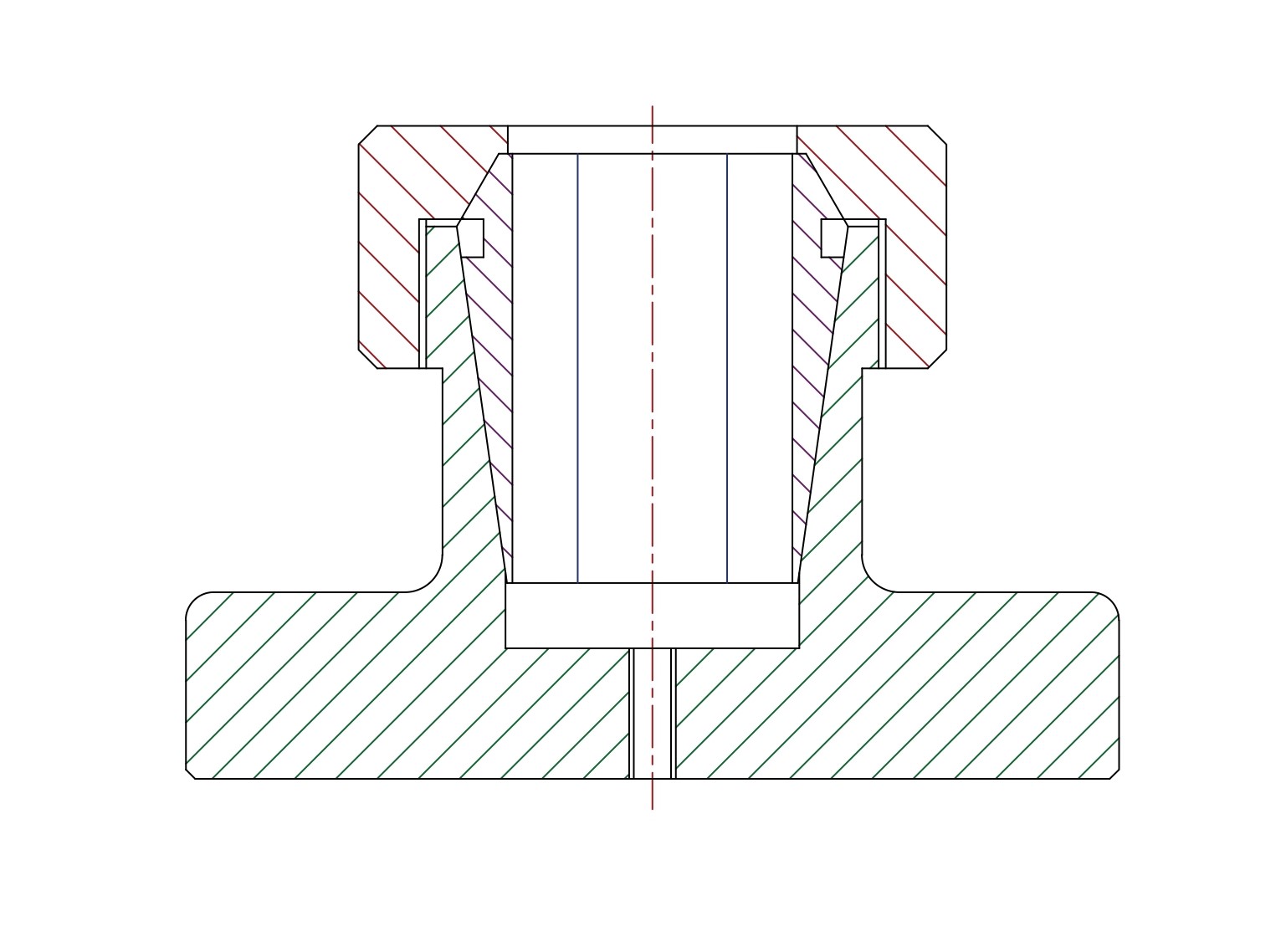

This collet mandrel set consists of a base diameter of 100 mm, collet sizes of ER 20, ER 25, ER 32 and ER 40 suitable for range of 5 collets. Collet Chuck Holder complete with ER Collet, clamping nut, spanner and set of 5 ER Collets in the specified sizes The Chuck is with the 4-hole suitable for mounting on 72 mm pitch circle diameter, it can be fixed to your existing backplate via t nut blots or the four Allen screw - M8 x 1.25, threaded holes or it can be mounted on three jaw chuck. Collet Chuck Holders are manufactured in India with highest quality. We can provide professional service and better price for you.
Supplied with Set of - 5 Collets ER 32 of different Size -
Dia. 10 mm, Dia. 12 mm, Dia. 16 mm, Dia. 20 mm and Dia. 25 mm
MRP : 2946/- + (GST 18% Extra)
Offer price : 2900/- + (GST 18% Extra)
Ordering code : CM ER32 0100
Available stock : 5
MOQ : 1 (Nos.)
Delivery days : 15
